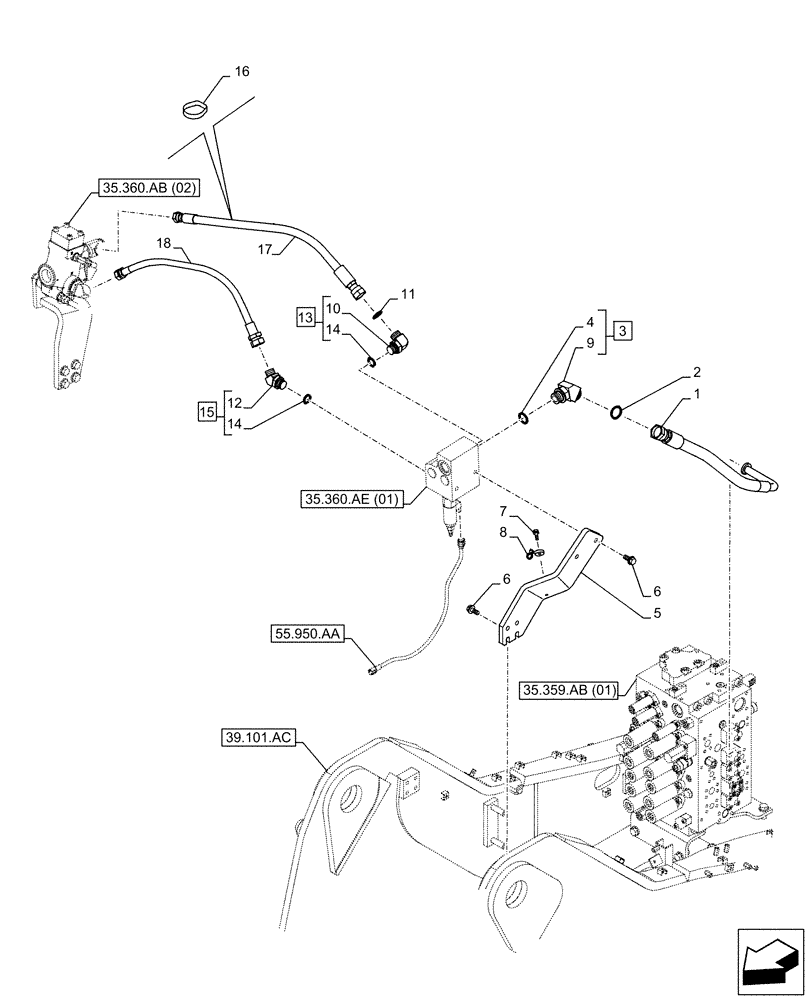

Запчасти Case CX250D LC (35.360.AB[05]) - VAR - 461869 - HYDRAULIC LINE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KBJ22290

HYDRAULIC HOSE

1шт.

2

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

3

KHJ11370

ELBOW

ASSY, Incl 4, 9

1шт.

4

154523A1

O-RING

1шт.

5

KBJ22500

BRACKET

1шт.

6

166352A1

BOLT

6шт.

7

KHJ1215

BOLT,Spcl

1шт.

8

KHR2584

CLAMP

1шт.

9

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 3

1шт.

10

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 13

1шт.

11

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

12

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 15

1шт.

13

KHJ1804

ELBOW

ASSY, G3/4 x 1･3/16, Incl 10, 14 (Qty 1)

1шт.

14

154503A1

O-RING

2шт.

15

157586A1

ELBOW

ASSY, G3/4 x G3/4, Incl 12, 14 (Qty 1)

1шт.

16

150496A1

MOUNTING CLIP

3шт.

17

KBJ19790

HYDRAULIC HOSE

710mm

1шт.

18

KRJ11540

HYDRAULIC HOSE,19.00 mm ID x 670.00 mm

1шт.
