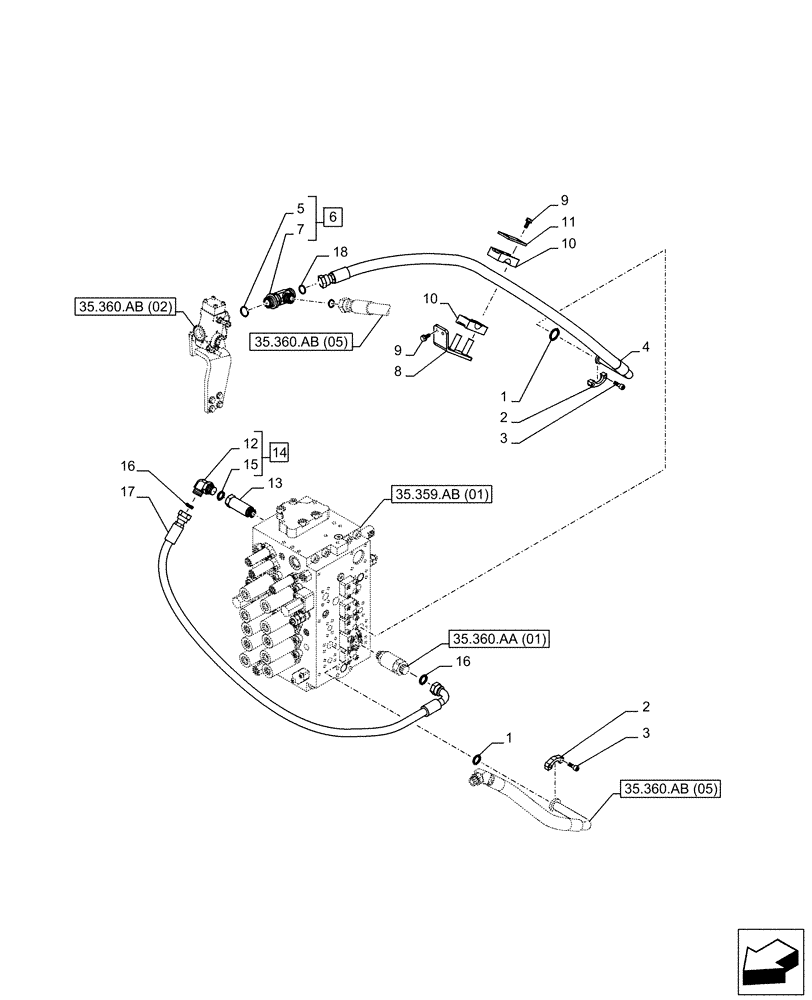

Запчасти Case CX250D LC (35.360.AB[04]) - VAR - 461869 - HYDRAULIC LINE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

155211A1

O-RING

2шт.

2

153459A1

FLANGE

4шт.

3

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

4

KBJ19770

HYDRAULIC HOSE

1шт.

5

152211A1

O-RING

1шт.

6

KHJ22660

TEE

ASSY, 1 - 7/16, Incl 5, 7

1шт.

7

NSS

NOT SOLD SEPARAT

T-Fitting, Incl in 7

1шт.

8

KBJ19820

BRACKET

1шт.

9

166052A1

BOLT

4шт.

10

KRJ11450

HOSE CLIP

2шт.

11

KRJ10800

PLATE

1шт.

12

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 14

1шт.

13

KHJ26310

STUD

1шт.

14

KHJ1804

ELBOW

ASSY, G3/4 x 1-3/16, Incl 12, 15

1шт.

15

154503A1

O-RING

1шт.

16

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

17

KBJ19810

HYDRAULIC HOSE

1шт.

18

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.
