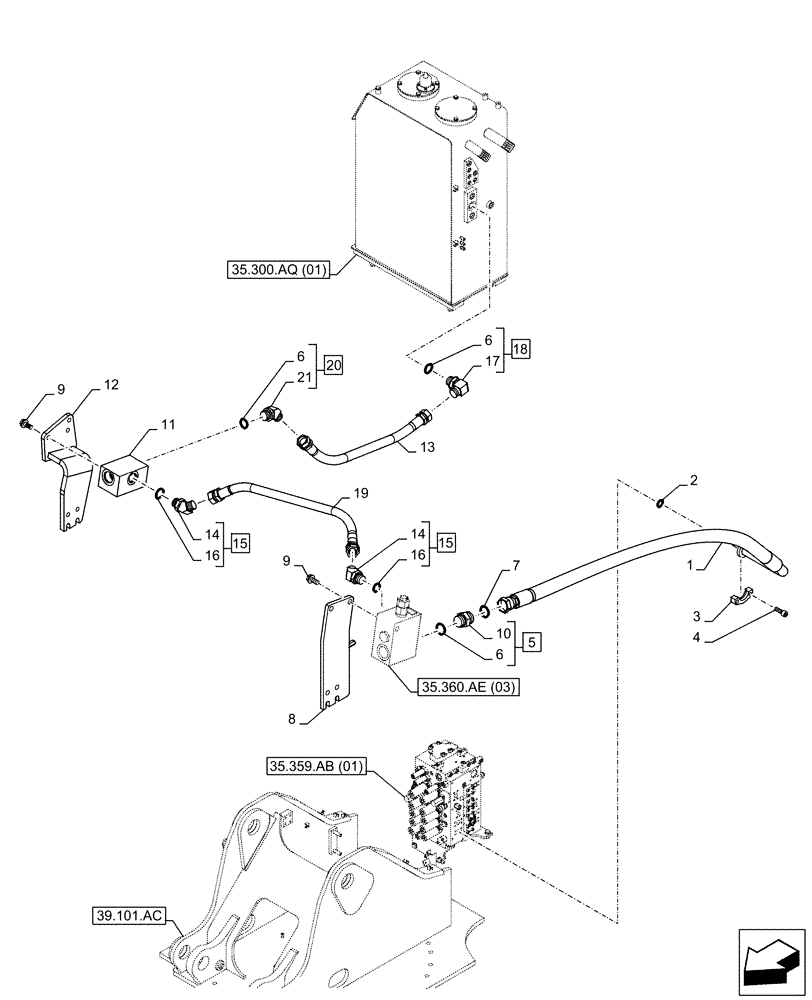

Запчасти Case CX250D LC (35.360.AB[01]) - VAR - 461865 - HAMMER CIRCUIT, LINE, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KBJ22370

HYDRAULIC HOSE

890mm

1шт.

2

155211A1

O-RING

1шт.

3

153459A1

FLANGE

2шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

5

KHJ1349

ADAPTER

ASSY, Incl 6 (Qty 1), 10

1шт.

6

154523A1

O-RING

3шт.

7

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

8

KRJ11470

SUPPORT

1шт.

9

166352A1

BOLT

12шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

1шт.

11

KRJ16400

MANIFOLD VALVE

1шт.

12

KRJ16050

SUPPORT

1шт.

13

KBJ22210

HYDRAULIC HOSE

740mm

1шт.

14

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 15

1шт.

15

157586A1

ELBOW

ASSY, G3/4" x G3/4", Incl 14, 16

2шт.

16

154503A1

O-RING

1шт.

17

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 18

1шт.

18

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

ASSY, G1" x G1", Incl 6 (Qty 1), 17

1шт.

19

KRJ11540

HYDRAULIC HOSE,19.00 mm ID x 670.00 mm

1шт.

20

157587A1

ELBOW

ASSY, G1" x G1", Incl 6 (Qty 1), 21

1шт.

21

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 20

1шт.
