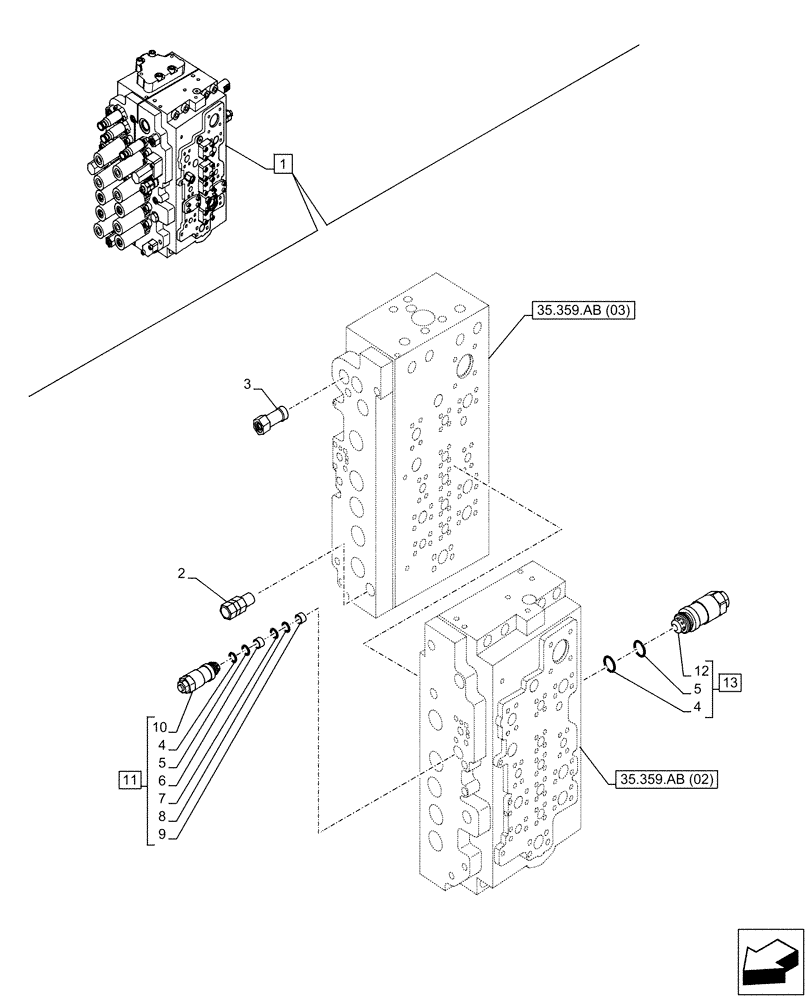

Запчасти Case CX250D LC (35.359.AY[01]) - RELIEF VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KBJ18672

CONTROL VALVE

Grey, ASSY, Incl 2 - 13

1шт.

See also Figure 35.359.AB (01), 35.359.AB (02), 35.359.AB (03), 35.359.AB (04)

1шт.

2

LJ022750

VALVE

Relief

1шт.

3

LJ022730

VALVE

Relief

2шт.

4

155223A1

O-RING

11шт.

5

154463A1

O-RING

6шт.

6

164905A1

BACK-UP RING

10шт.

7

164906A1

O-RING

5шт.

8

163323A1

O-RING

5шт.

9

164575A1

BACK-UP RING

10шт.

10

NSS

NOT SOLD SEPARAT

Relief Valve, Incl in 11

5шт.

11

LJ00734

HYDRAULIC VALVE

Relief, ASSY, Incl 4 (Qty 10), 5 (Qty 5), 6 - 10

5шт.

12

NSS

NOT SOLD SEPARAT

Relief Valve, Incl in 13

1шт.

13

LJ015020

VALVE PRESSURE RELIE

ASSY, Incl 4 (Qty 1), 5 (Qty 1), 12

1шт.
