(35.359.AE) - CONTROL VALVE, LINE

Запчасти Case CX250D LC (35.359.AE) - CONTROL VALVE, LINE (35) - HYDRAULIC SYSTEMS

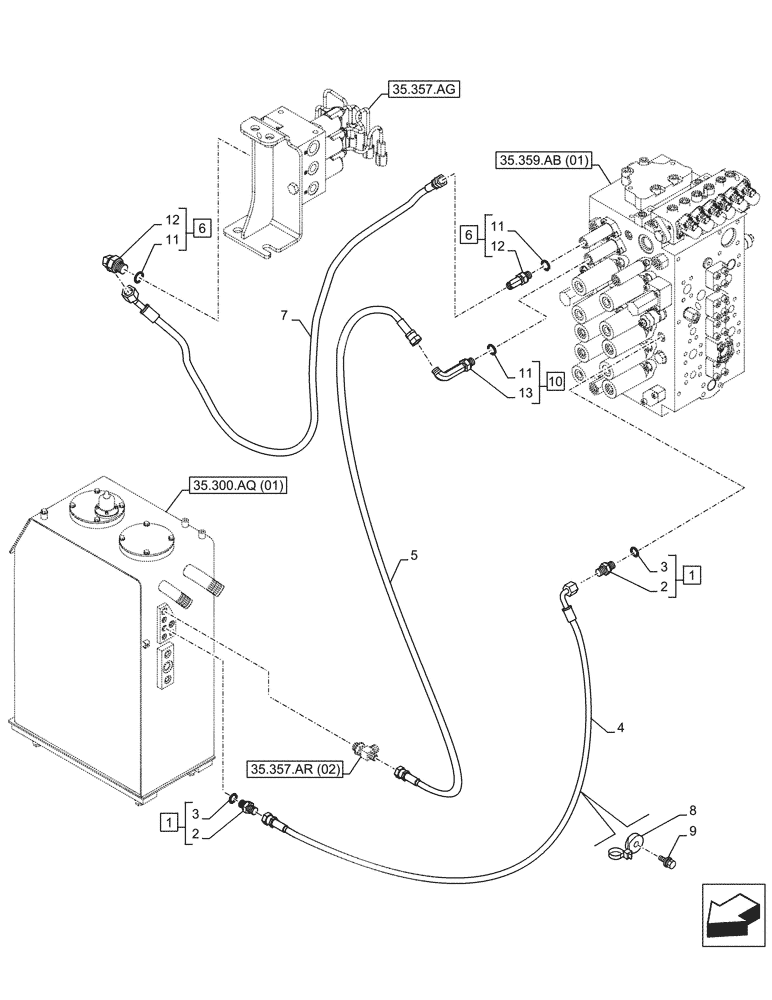

Схема запчастей Case CX250D LC - (35.359.AE) - CONTROL VALVE, LINE (35) - HYDRAULIC SYSTEMS
35.359.ab (01)
5
7
1
1
6
8
12
3
10
4
2
12
11
11
11
2
6
13
9
3
35.300.aq (01)
35.357.ar (02)
35.357.ag
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 2, 3

2шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

2шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

4

KHJ13800

HOSE

1350mm

1шт.

5

KHJ2394

HOSE ASSY.

550mm

1шт.

6

KHJ28580

ELBOW

ASSY, Incl 11 (Qty 2), 12

2шт.

7

KHJ32150

HOSE

2000mm

1шт.

8

KHR2584

CLAMP

1шт.

9

KHJ1215

BOLT,Spcl

1шт.

10

KHJ28810

ELBOW

ASSY, Incl 11 (Qty 1), 13

1шт.

11

150960A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

12

NSS

NOT SOLD SEPARAT

Fitting, G1/4 x G1/4, Incl in 6

2шт.

13

NSS

NOT SOLD SEPARAT

90°-Fitting, G1/4 x G1, Incl in 10

1шт.
