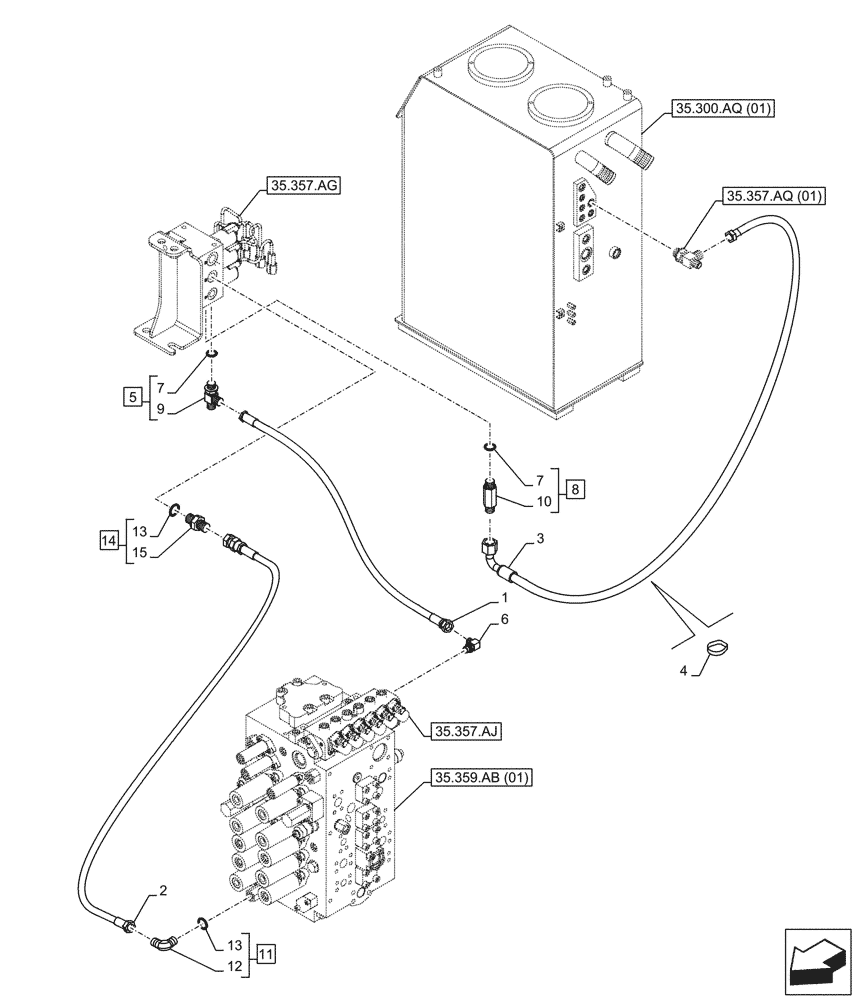

Запчасти Case CX250D LC (35.357.AR[01]) - PILOT VALVE, CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS

1

KHJ24360

HYDRAULIC HOSE

1800mm

1шт.

2

KHJ2334

HOSE

1480mm

1шт.

3

KHJ14260

HOSE

1900mm

1шт.

4

150496A1

MOUNTING CLIP

1шт.

5

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

ASSY, Incl 7, 9

1шт.

6

KHJ29610

ELBOW

G3/8 x G3/8

1шт.

7

154475A1

O-RING

2шт.

8

KAJ2351

FITTING

ASSY, Incl 7, 10

1шт.

9

NSS

NOT SOLD SEPARAT

T-Fitting, Incl in 5

1шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

1шт.

11

KHJ28580

ELBOW

ASSY, Incl 12, 13 (Qty 1)

1шт.

12

NSS

NOT SOLD SEPARAT

Fitting, G1/4 x G1/4, Incl in 11

1шт.

13

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 15, 13 (Qty 1)

1шт.

15

NSS

NOT SOLD SEPARAT

Fitting, Incl in 14

1шт.
