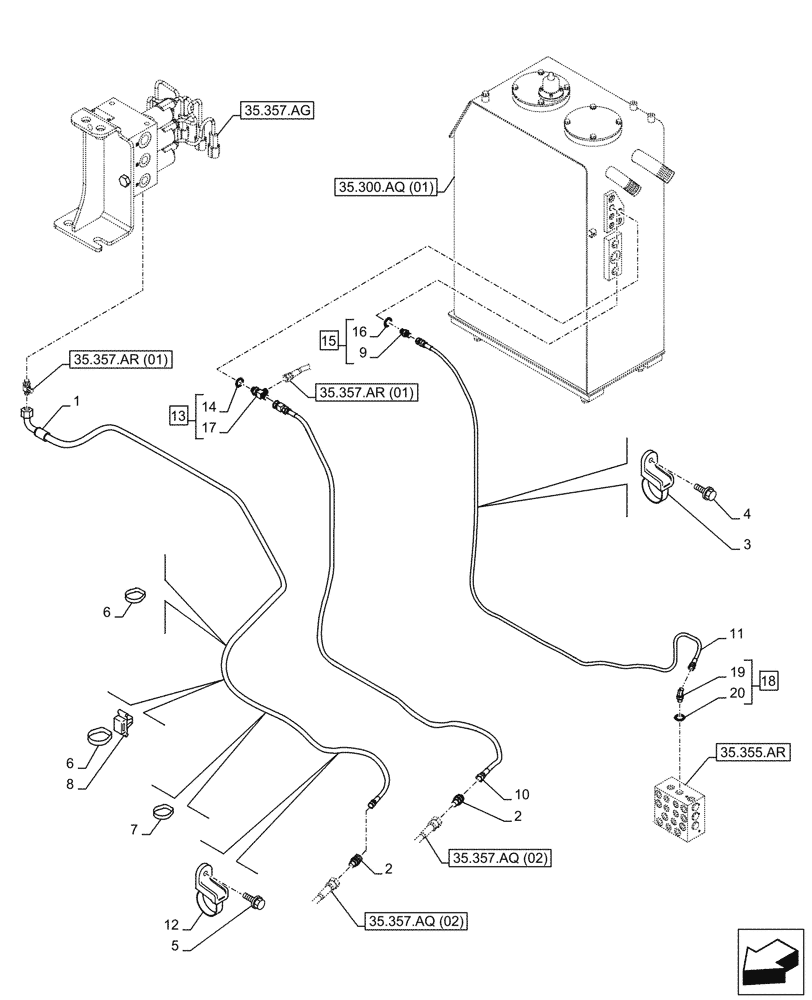

Запчасти Case CX250D LC (35.357.AQ[01]) - PILOT VALVE, DRAIN LINE (35) - HYDRAULIC SYSTEMS

1

KHJ26810

HOSE ASSY.

2550mm

1шт.

2

162826A1

ADAPTER

G3/8

2шт.

3

KHR2582

CLAMP

2шт.

4

KHJ2298

BOLT,Spcl

1шт.

5

KHJ1215

BOLT,Spcl

6шт.

6

150496A1

MOUNTING CLIP

6шт.

7

150498A1

MOUNTING CLIP

2шт.

8

KHR10220

MOUNTING CLIP

1шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 16

1шт.

10

KHJ2308

HOSE

2150mm

1шт.

11

KHJ2069

HOSE

2300mm

1шт.

12

KHR2581

CLAMP

4шт.

13

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

ASSY, Incl 14, 17

1шт.

14

154475A1

O-RING

1шт.

15

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 9, 16

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

17

NSS

NOT SOLD SEPARAT

T-Fitting, Incl in 13

1шт.

18

KHJ28580

ELBOW

ASSY, Incl 19, 20

1шт.

19

NSS

NOT SOLD SEPARAT

Fitting, Incl in 18

1шт.

20

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
