(35.356.AR[05]) - STD + VAR - 461558 - PEDAL, DRAIN LINE

Запчасти Case CX250D LC (35.356.AR[05]) - STD + VAR - 461558 - PEDAL, DRAIN LINE (35) - HYDRAULIC SYSTEMS

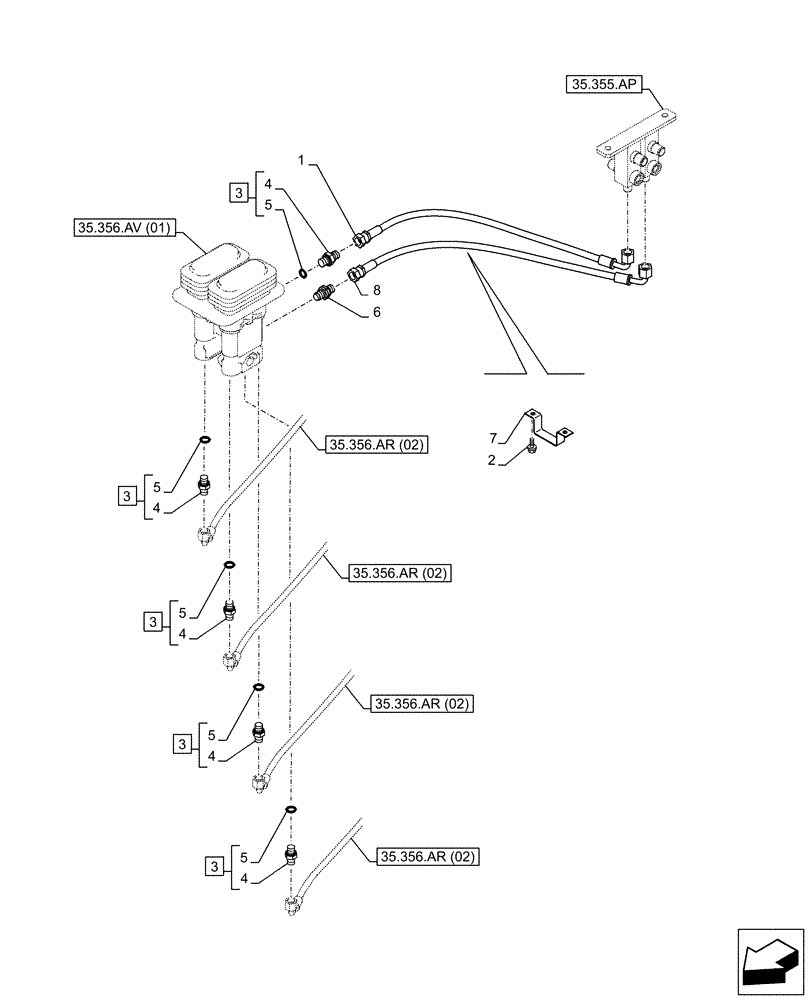

Схема запчастей Case CX250D LC - (35.356.AR[05]) - STD + VAR - 461558 - PEDAL, DRAIN LINE (35) - HYDRAULIC SYSTEMS
35.356.ar (02)
5
3
4
5
5
3
4
4
3
7
6
1
2
3
5
3
5
8
4
4
35.355.ap
35.356.av (01)
35.356.ar (02)
35.356.ar (02)
35.356.ar (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ2092

HOSE

6mm ID x 1150mm

1шт.

2

166345A1

BOLT

M8 x 16mm, Start Serial: D0086

4шт.

3

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

G1/4" x G1/4", ASSY, Incl 4 - 5, Start Serial: D0086

5шт.

4

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

5шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

5шт.

6

161841A1

HYD CONNECTOR

G1/4", Start Serial: D0086

1шт.

7

KHJ1220

COLLAR

, Start Serial: D0086

2шт.

8

KHJ23540

HOSE

1080mm

1шт.

Выбрано товаров: 8
