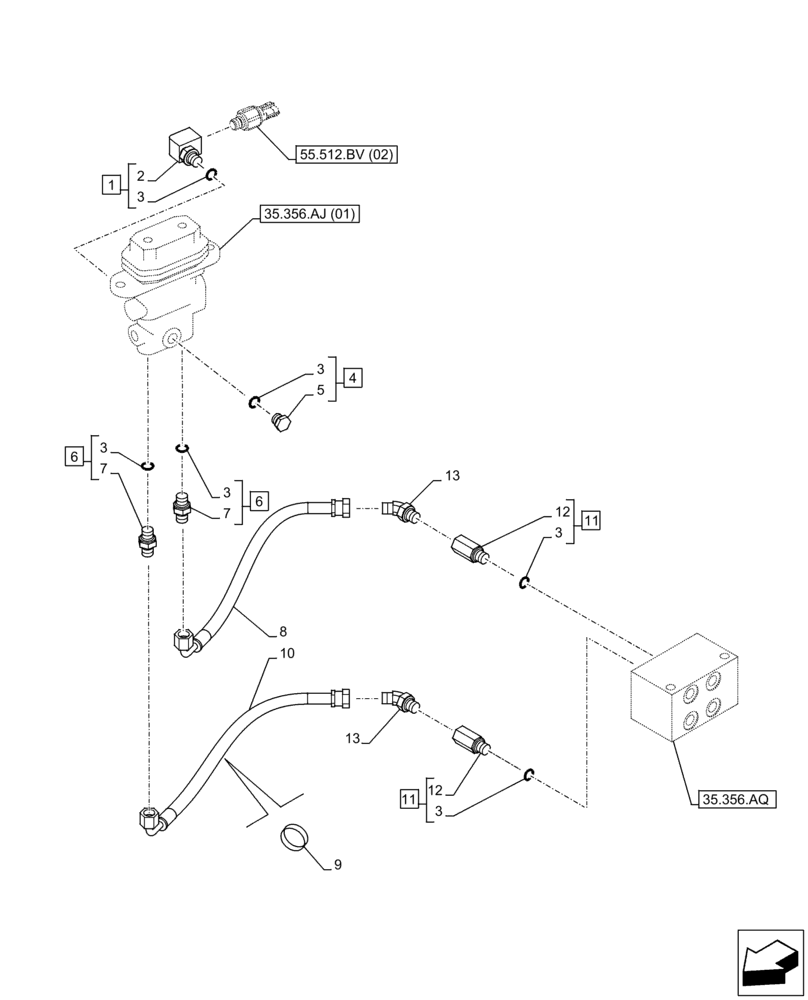

Запчасти Case CX250D LC (35.356.AR[03]) - PEDAL, DRAIN LINE (35) - HYDRAULIC SYSTEMS

1

KHJ0719

ELBOW

ASSY, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 1

1шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

6шт.

4

159002A1

PLUG

ASSY, Incl 3 (Qty 1), 5

1шт.

5

NSS

NOT SOLD SEPARAT

Plug, Incl in 4

1шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 3 (Qty 1), 7

2шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

2шт.

8

KHJ2238

HOSE

6mm ID x 320mm

1шт.

9

150496A1

MOUNTING CLIP

250mm

1шт.

10

KHJ2084

HOSE

6mm ID x 350mm

1шт.

11

162525A1

STUD

ASSY, G1/4" x G1/4", Incl 3 (Qty 1), 12

2шт.

12

NSS

NOT SOLD SEPARAT

Fitting, Incl in 11

2шт.

13

KHJ28630

ELBOW

G1/4" x G1/4"

2шт.
