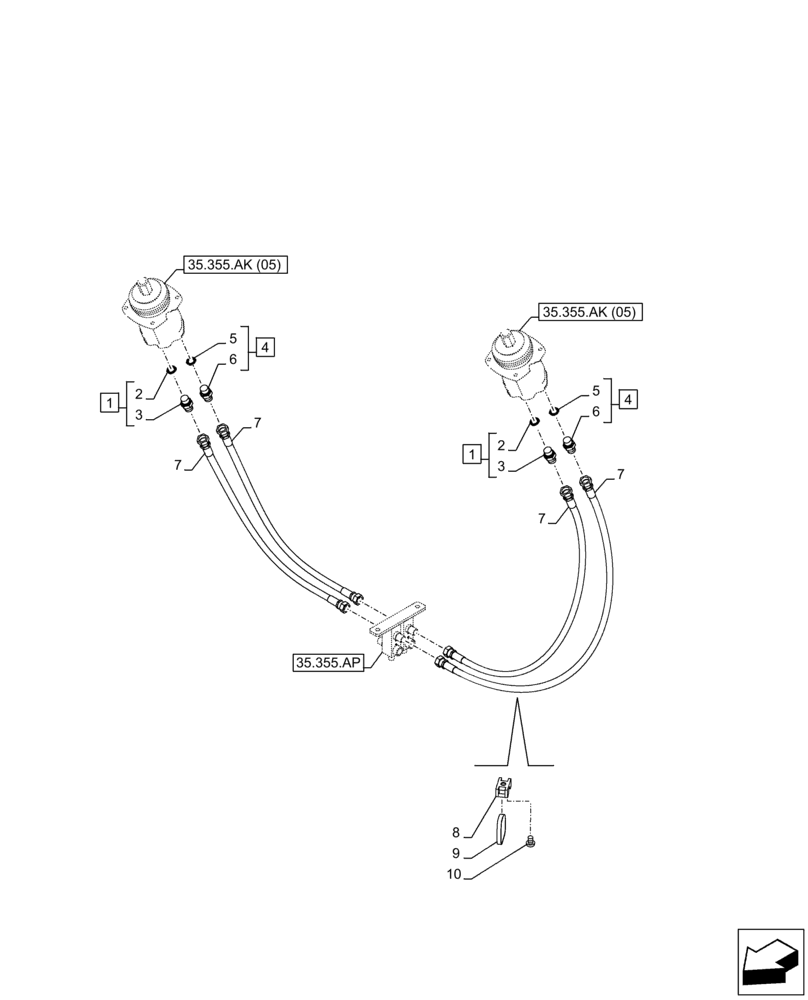

Запчасти Case CX250D LC (35.355.AO) - STD + VAR - 461558 - JOYSTICK, DRAIN LINE, BLOCK (35) - HYDRAULIC SYSTEMS

1

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8 x G3/8, Incl 2, 3

6шт.

2

154475A1

O-RING

6шт.

3

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

1шт.

4

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

ASSY, Incl 5, 6

6шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

6шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

7

159213A1

HYDRAULIC HOSE

9mm ID x 1150mm

4шт.

8

150860A1

COLLAR

1шт.

9

150498A1

MOUNTING CLIP

1шт.

10

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.
