(35.355.AK[04]) - VAR - 461863 - JOYSTICK, CLAMSHELL BUCKET, ROTATION, CLAMSHELL BUCKET, ROTATION

Запчасти Case CX250D LC (35.355.AK[04]) - VAR - 461863 - JOYSTICK, CLAMSHELL BUCKET, ROTATION, CLAMSHELL BUCKET, ROTATION (35) - HYDRAULIC SYSTEMS

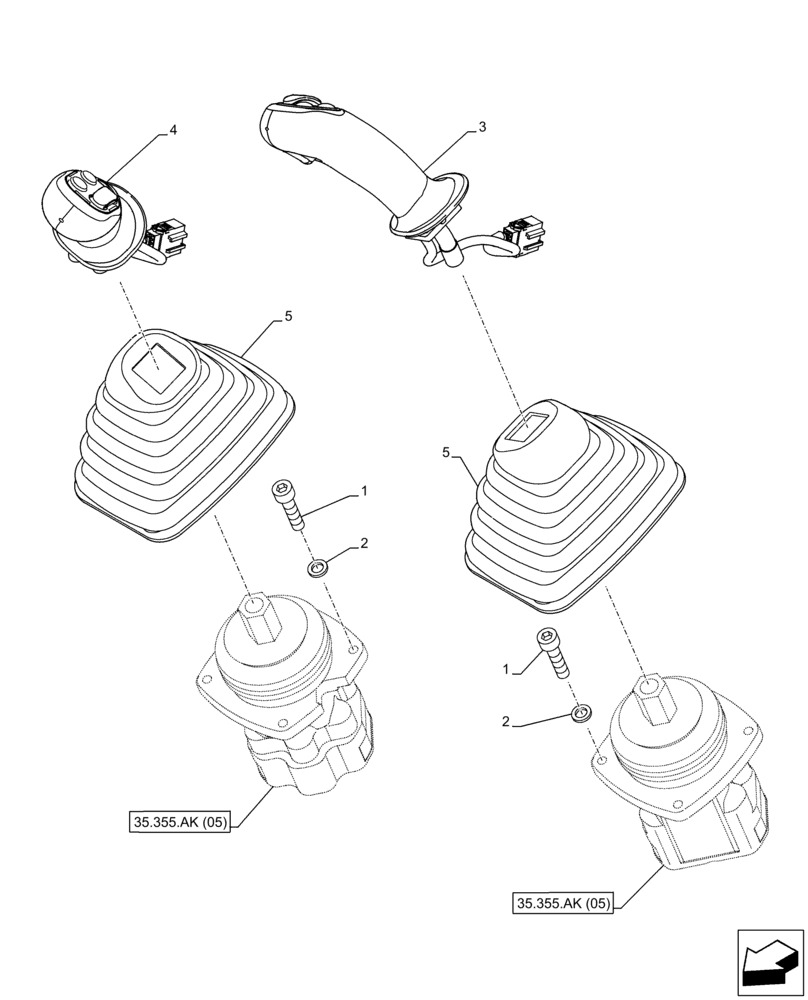

Схема запчастей Case CX250D LC - (35.355.AK[04]) - VAR - 461863 - JOYSTICK, CLAMSHELL BUCKET, ROTATION, CLAMSHELL BUCKET, ROTATION (35) - HYDRAULIC SYSTEMS
3
5
2
1
1
35.355.ak (05)
35.355.ak (05)
4
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

862-6025

HEX SOC SCREW,M6 x 25mm, Cl 12.9

6шт.

2

892-11006

LOCK WASHER,M6

6шт.

3

KHJ28540

JOYSTICK

Left

1шт.

4

KHJ28550

JOYSTICK

Right

1шт.

Can be Equipped with VAR 461865 or 461868 or 461869 or 461871 or 461872

1шт.

5

KHN16760

BELLOWS

2шт.
