(35.355.AK[03]) - VAR - 461863 - JOYSTICK, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LEFT

Запчасти Case CX250D LC (35.355.AK[03]) - VAR - 461863 - JOYSTICK, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LEFT (35) - HYDRAULIC SYSTEMS

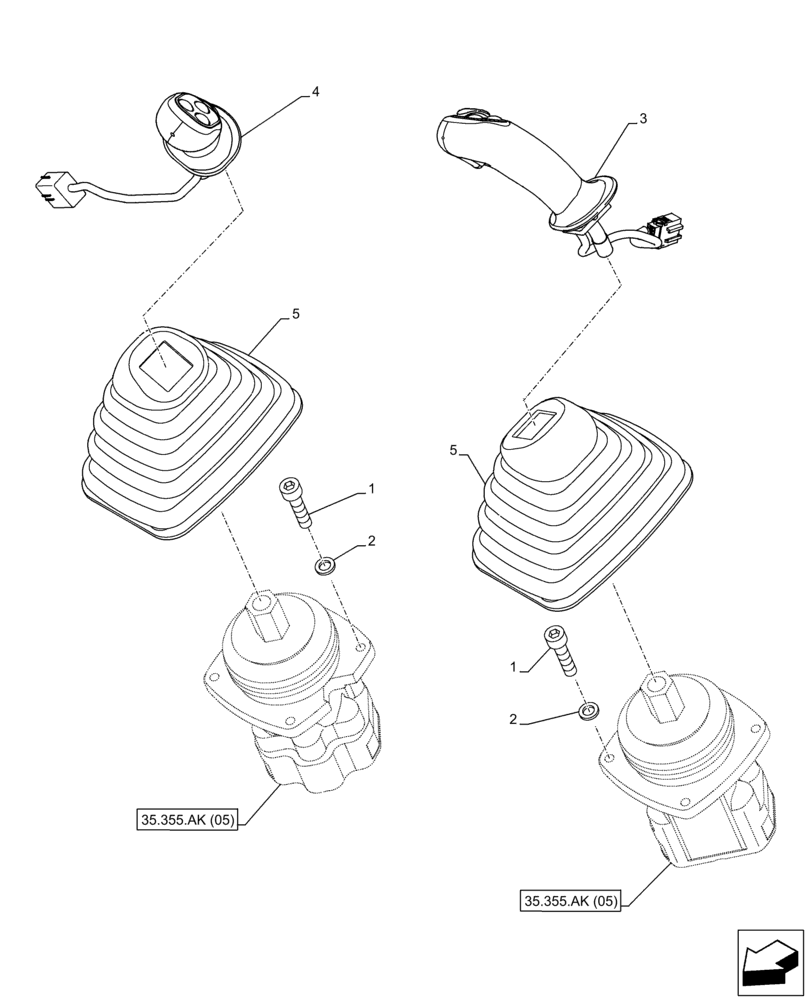

Схема запчастей Case CX250D LC - (35.355.AK[03]) - VAR - 461863 - JOYSTICK, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LEFT (35) - HYDRAULIC SYSTEMS
5
5
2
1
2
1
35.355.ak (05)
35.355.ak (05)
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

862-6025

HEX SOC SCREW,M6 x 25mm, Cl 12.9

6шт.

2

892-11006

LOCK WASHER,M6

6шт.

3

KHJ28540

JOYSTICK

Left

1шт.

4

KHJ29090

KNOB

Right

1шт.

Can be Equipped with VAR 461561

1шт.

5

KHN16760

BELLOWS

2шт.
