(35.355.AC[08]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION

Запчасти Case CX250D LC (35.355.AC[08]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

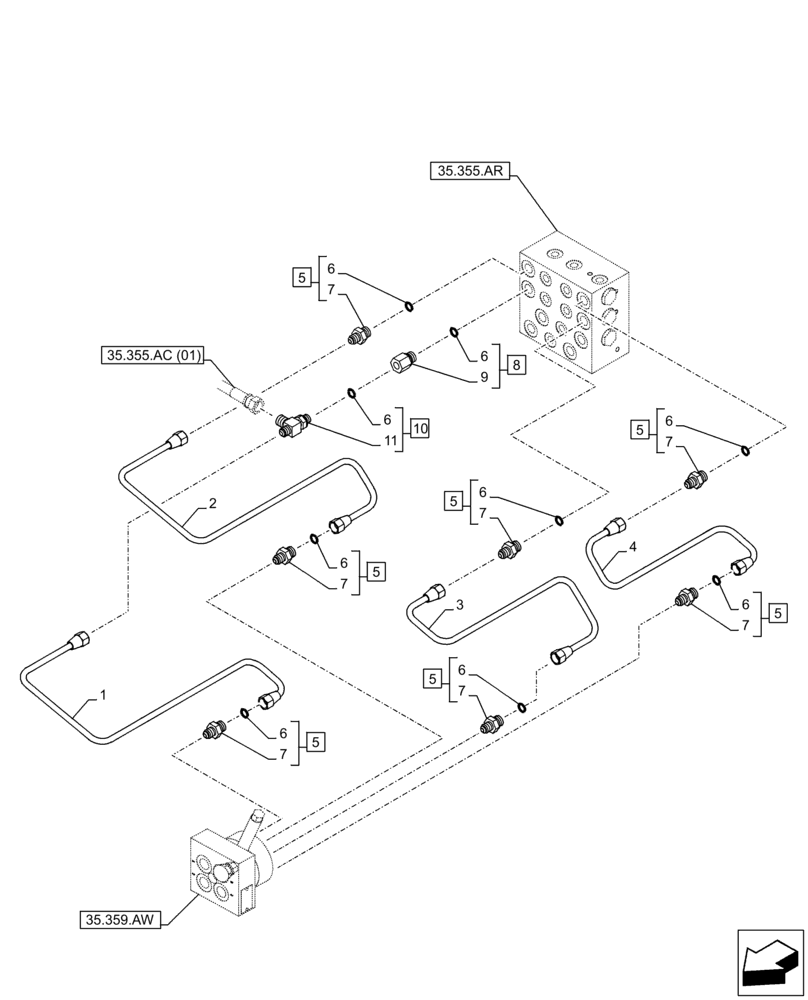

Схема запчастей Case CX250D LC - (35.355.AC[08]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
8
10
3
6
6
2
7
6
6
6
6
4
5
5
6
5
7
5
7
1
6
35.355.ar
35.359.aw
7
5
5
5
9
7
35.355.ac (01)
7
11
6
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ32690

PIPE

, Start Serial: D0083

1шт.

2

KHJ31960

PIPE

, Start Serial: D0083

1шт.

3

KHJ23370

HYD TUBE

, Start Serial: D0083

1шт.

4

KHJ32490

PIPE

, Start Serial: D0083

1шт.

5

KHJ1821

NIPPLE, LUBE

ASSY, Incl 6, 7, Start Serial: D0083

7шт.

6

154475A1

O-RING

9шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

1шт.

8

168855A1

STUD

ASSY, G3/8 x G1/4, Incl 6, 9, Start Serial: D0083

1шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Inc in 8

1шт.

10

KHJ2132

TEE

ASSY, G1/4 x M14 x G3, Incl 6, 11, Start Serial: D0083

1шт.

11

NSS

NOT SOLD SEPARAT

T-Fitting, Incl in 10

1шт.
