(35.355.AC[07]) - VAR - 461558 - JOYSTICK, LH, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION

Запчасти Case CX250D LC (35.355.AC[07]) - VAR - 461558 - JOYSTICK, LH, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

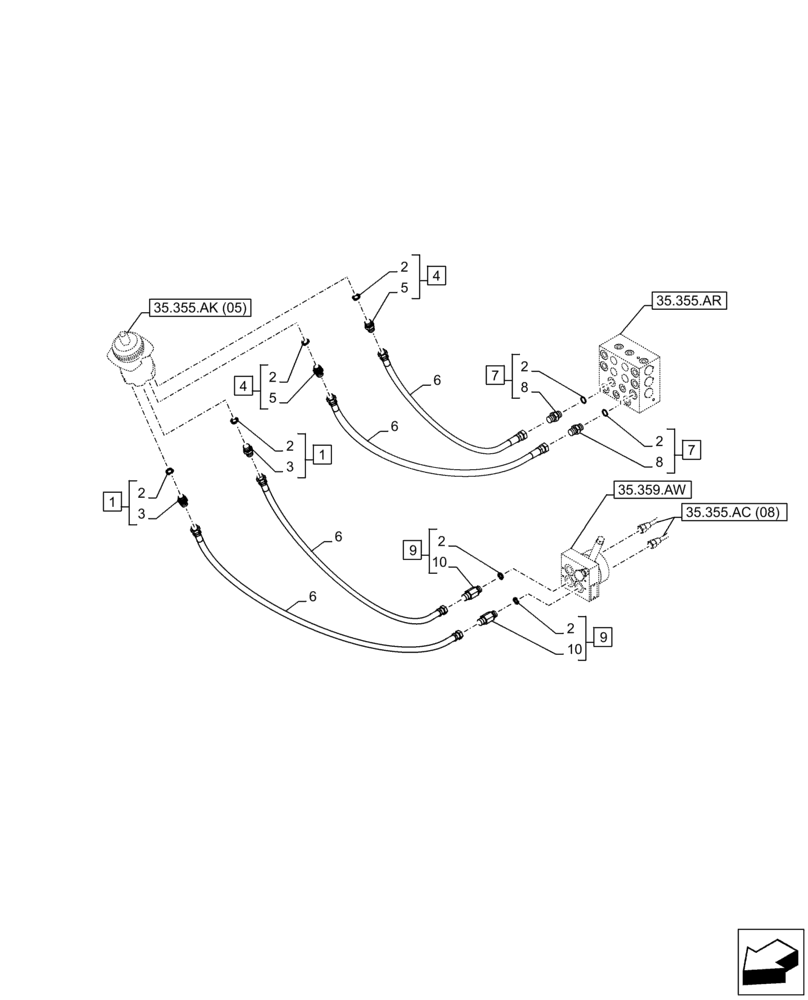

Схема запчастей Case CX250D LC - (35.355.AC[07]) - VAR - 461558 - JOYSTICK, LH, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
35.359.aw
2
2
4
10
1
2
9
35.355.ar
7
3
9
6
2
10
2
2
7
6
8
3
6
8
35.355.ac (08)
2
6
2
1
4
35.355.ak (05)
5
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8 x G3/8, Incl 2, 3, Start Serial: D0082

2шт.

2

154475A1

O-RING

8шт.

3

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

2шт.

4

KHJ1402

ADAPTER

ASSY, Incl 2, 5, Start Serial: D0082

2шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

5шт.

6

159217A1

HYDRAULIC HOSE

1850mm

4шт.

7

KAJ2351

FITTING

ASSY, G3/8 x G3/8, Incl 2, 8, Start Serial: D0082

2шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

2шт.

9

159226A1

ADAPTER

ASSY, G3/8 x G3/8, Incl 2, 10

2шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

2шт.
