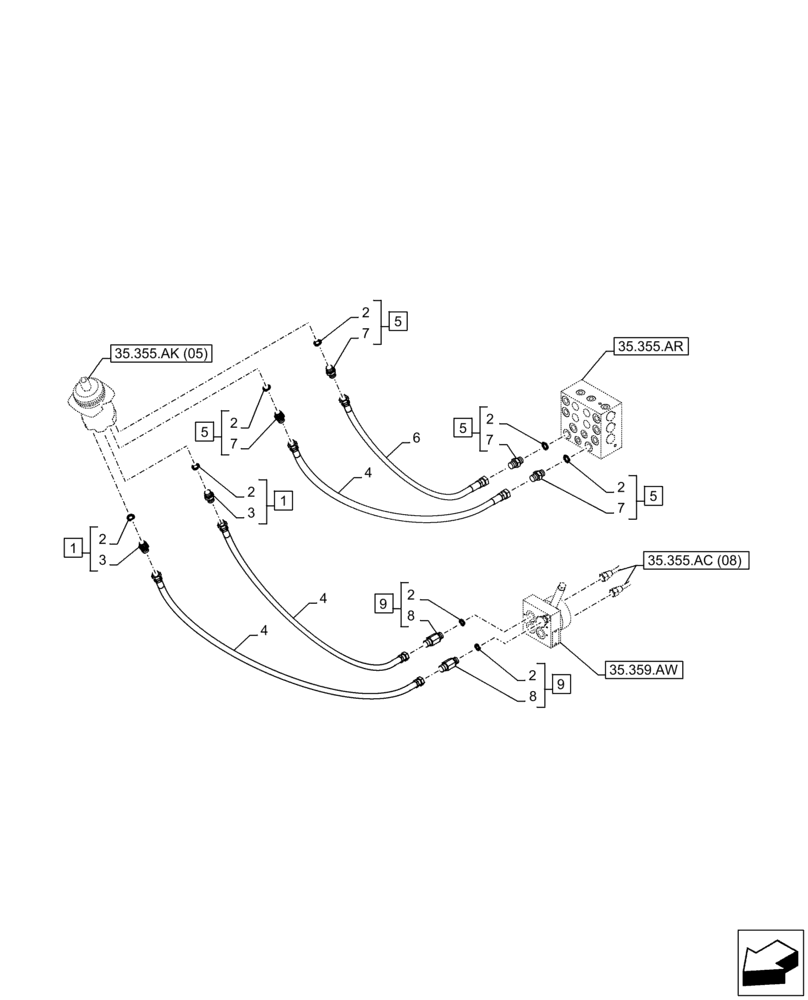

Запчасти Case CX250D LC (35.355.AC[06]) - VAR - 461558 - JOYSTICK, RH, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

1

KHJ1402

ADAPTER

ASSY, Incl 2, 3, Start Serial: D0081

2шт.

2

154475A1

O-RING

8шт.

3

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

1шт.

4

159211A1

HYDRAULIC HOSE

2000mm, Start Serial: D0081

3шт.

5

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8 x G3/8, Incl 2, 7, Start Serial: D0081

4шт.

6

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

1950mm, Start Serial: D0081

1шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

4шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl 9

1шт.

9

159226A1

ADAPTER

ASSY, G3/8 x G3/8, Incl 2, 8

2шт.
