(35.355.AC[05]) - JOYSTICK, LH, HYDRAULIC LINE, CONTROL VALVE

Запчасти Case CX250D LC (35.355.AC[05]) - JOYSTICK, LH, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

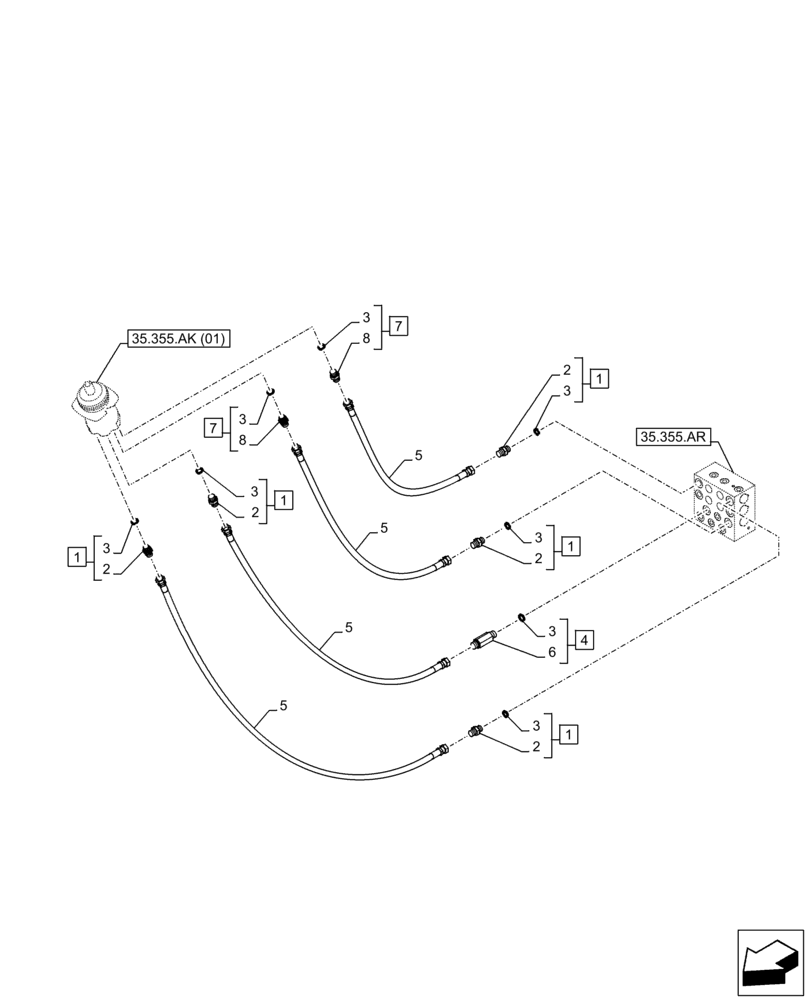

Схема запчастей Case CX250D LC - (35.355.AC[05]) - JOYSTICK, LH, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS
5
5
3
3
8
3
3
1
35.355.ar
8
1
7
1
6
1
3
2
2
2
5
2
5
2
35.355.ak (01)
4
1
3
3
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8 x G3/8, Incl 2, 3

5шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

5шт.

3

154475A1

O-RING

8шт.

4

KAJ2351

FITTING

ASSY, G3/8 x G3/8, Incl in 3, 6

1шт.

5

159217A1

HYDRAULIC HOSE

1850mm

4шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

7

KHJ1402

ADAPTER

ASSY, Incl 3, 8

2шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl 7

2шт.

Выбрано товаров: 8
