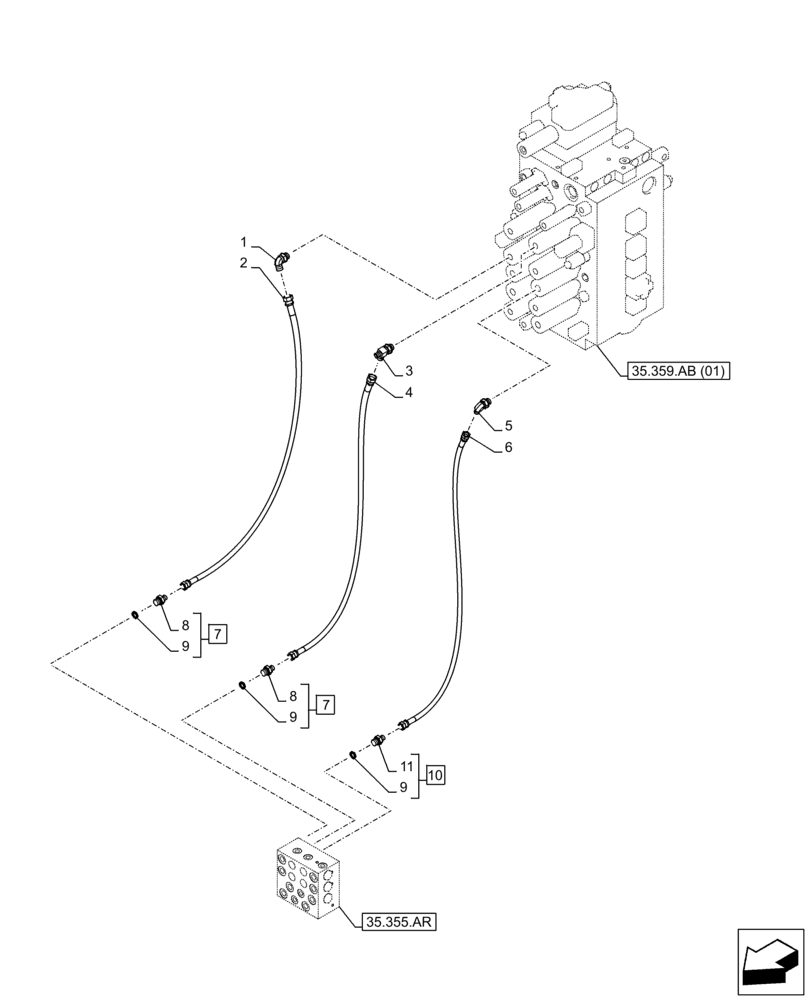

Запчасти Case CX250D LC (35.355.AC[03]) - STD + VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

KHJ28590

ELBOW

G3/8 x G3/8

1шт.

2

KHJ2010

HOSE

9mm ID x 1450mm

2шт.

3

KHJ13900

TEE

G3/8" x G1/4" x G3/8"

1шт.

4

KHJ2100

FLEXIBLE HOSE

9mm ID x 1500mm

1шт.

5

KHJ28690

ELBOW

G3/8" x G1/4"

2шт.

6

KHJ2057

HOSE

6mm ID x 1450mm

1шт.

7

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 8, 9

5шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.

9

154475A1

O-RING

3шт.

10

153378A1

ADAPTER

ASSY, Incl 9, 11

2шт.

11

NSS

NOT SOLD SEPARAT

Fitting, Incl in 10

1шт.
