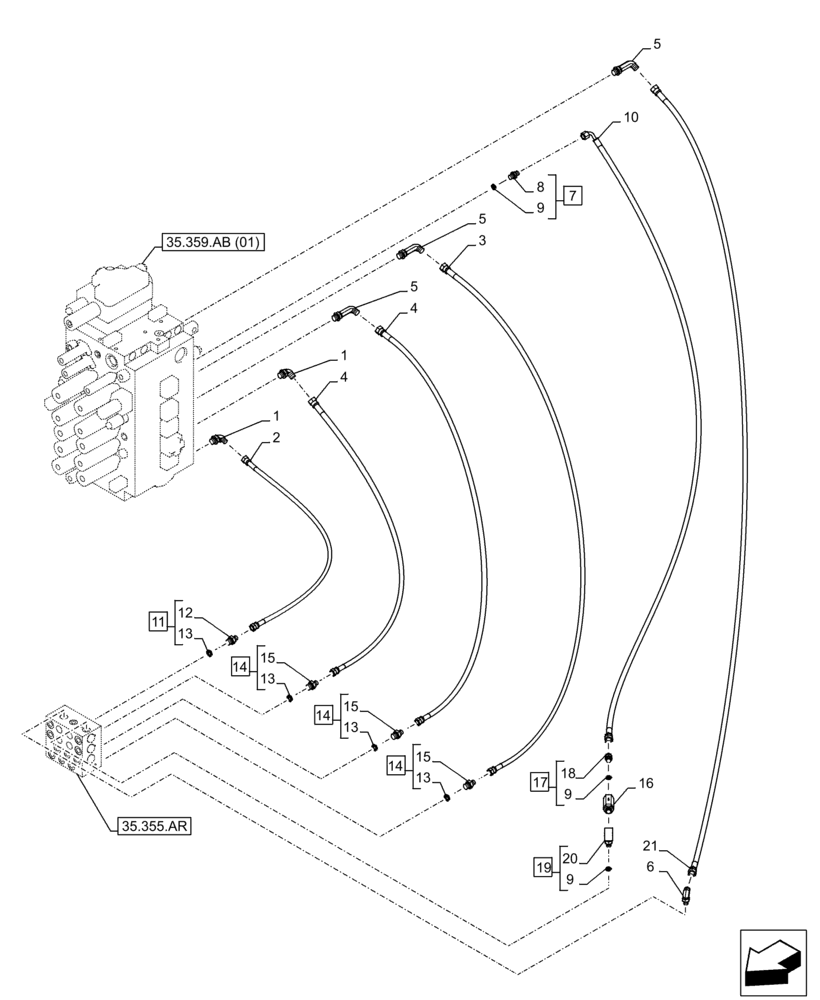

Запчасти Case CX250D LC (35.355.AC[02]) - STD + VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

KHJ28690

ELBOW

G3/8" x G1/4"

2шт.

2

KHJ2055

HOSE

6mm ID x 1250mm

1шт.

3

KHJ2010

HOSE

9mm ID x 1450mm

2шт.

4

KHJ2318

HOSE

9mm ID x 1400mm

2шт.

5

KHJ28820

ELBOW

G3/8" x G3/8"

3шт.

6

KHJ28710

ELBOW

G1/4" x G3/8"

1шт.

7

162366A1

ADAPTER

ASSY, Incl 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

10

KHJ13800

HOSE

6mm ID x 1350mm

1шт.

11

153378A1

ADAPTER

G3/8" x G1/4", ASSY, Incl 12, 13

2шт.

12

NSS

NOT SOLD SEPARAT

Fitting, Incl in 11

1шт.

13

154475A1

O-RING

7шт.

14

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

G3/8" x G3/8", ASSY, Incl 13, 15

5шт.

15

NSS

NOT SOLD SEPARAT

Fitting, Incl in 14

1шт.

16

KHJ10790

FILTER SCREEN

1шт.

17

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

G1/4" x G1/4", ASSY, Incl 18, 19

1шт.

18

NSS

NOT SOLD SEPARAT

Fitting, Incl in 17

1шт.

19

KHJ0719

ELBOW

G1/4" x G1/4", ASSY, Incl 20, 9

1шт.

20

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 19

1шт.

21

KHJ2416

HOSE

9mm ID x 1480mm

1шт.
