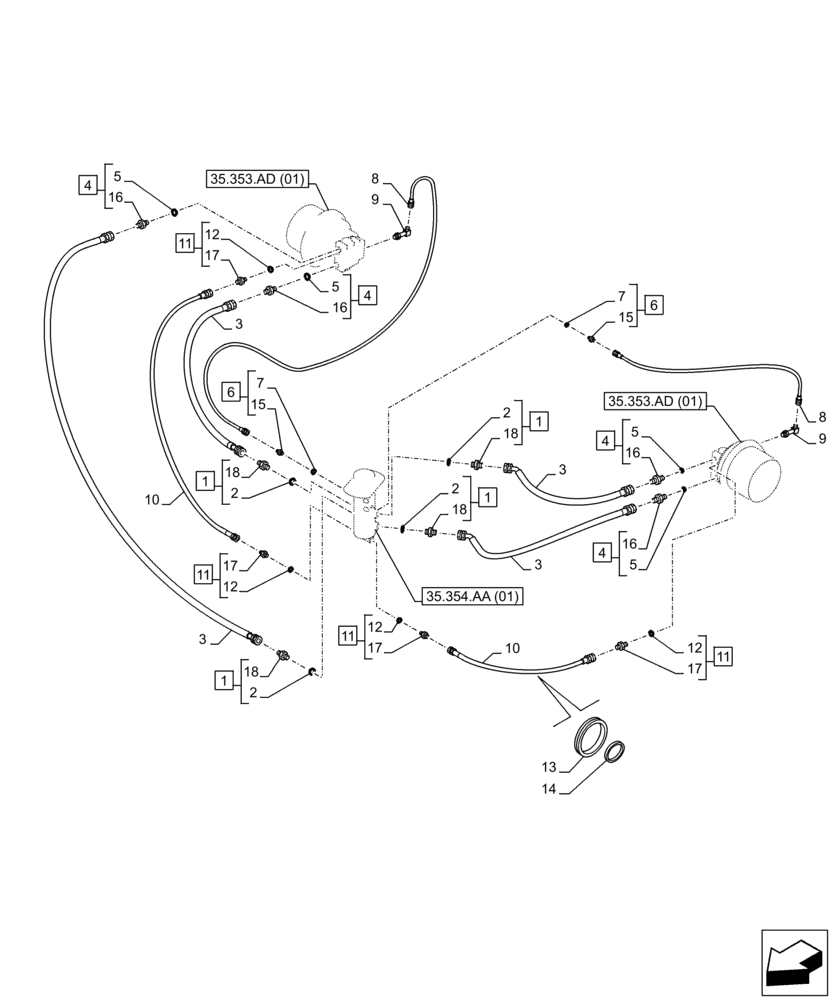

Запчасти Case CX250D LC (35.353.AE) - TRAVEL MOTOR & REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS

1

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ASSY, Incl 2, 18, Start Serial: D0012

4шт.

2

154523A1

O-RING

4шт.

3

159418A1

HYDRAULIC HOSE,25.4mm ID x 2350mm L

, Start Serial: D0012

4шт.

4

153001A1

ADAPTER

ASSY, Incl 5, 16, Start Serial: D0012

4шт.

5

154503A1

O-RING

LH/RH

4шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY,LH/RH, Incl 7, 15, Start Serial: D0012

2шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

LH/RH

2шт.

8

157203A1

HOSE,2800.00 mm

, Start Serial: D0012

2шт.

9

KHJ1178

ELBOW

, Start Serial: D0012

2шт.

10

151919A1

HOSE ASSY.,12.70 mm ID x 2360.00 mm

, Start Serial: D0012

2шт.

11

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, Incl 12, 17, Start Serial: D0012

4шт.

12

154487A1

O-RING

LH/RH

4шт.

13

159398A1

RUBBER BLOCK

, Start Serial: D0012

2шт.

14

150071A1

MOUNTING CLIP

, Start Serial: D0012

4шт.

15

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

16

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

17

NSS

NOT SOLD SEPARAT

Fitting, Incl in 11

1шт.

18

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

1шт.
