/ / / / / / / / (35.352.AW) - VAR - 461568 - LOCKOUT SOLENOID VALVE, FREE SWING, COMPONENTS

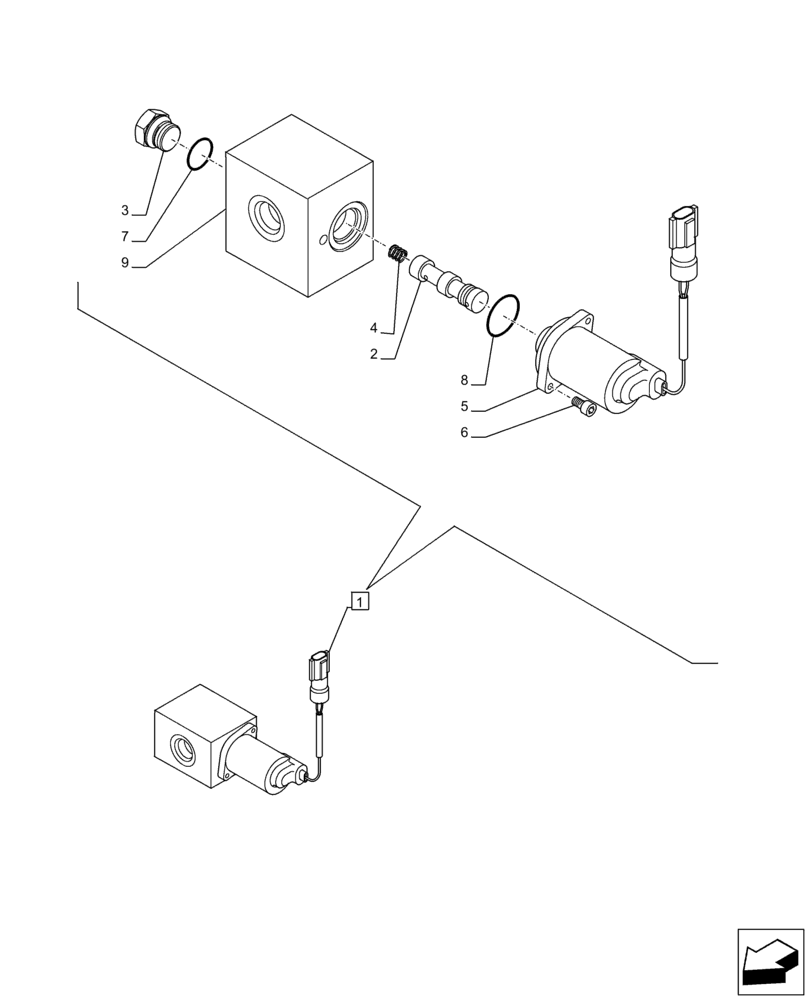

Запчасти Case CX250D LC (35.352.AW) - VAR - 461568 - LOCKOUT SOLENOID VALVE, FREE SWING, COMPONENTS (35) - HYDRAULIC SYSTEMS
7
8
3
6
4
1
2
5
9
1
159205A1
VALVE
ASSY, Incl 2 - 9
1шт.
2
NSS
NOT SOLD SEPARAT
Pin, Incl in 1
1шт.
3
155456A1
PLUG
1шт.
4
LSC0278
COMPRESSION SPRING
1шт.
5
CDP0873
SOLENOID VALVE
1шт.
6
160298A1
BOLT,Hex Skt
2шт.
7
154462A1
O-RING
1шт.
8
154482A1
O-RING
1шт.
9
NSS
NOT SOLD SEPARAT
Case, Incl in 1
1шт.
