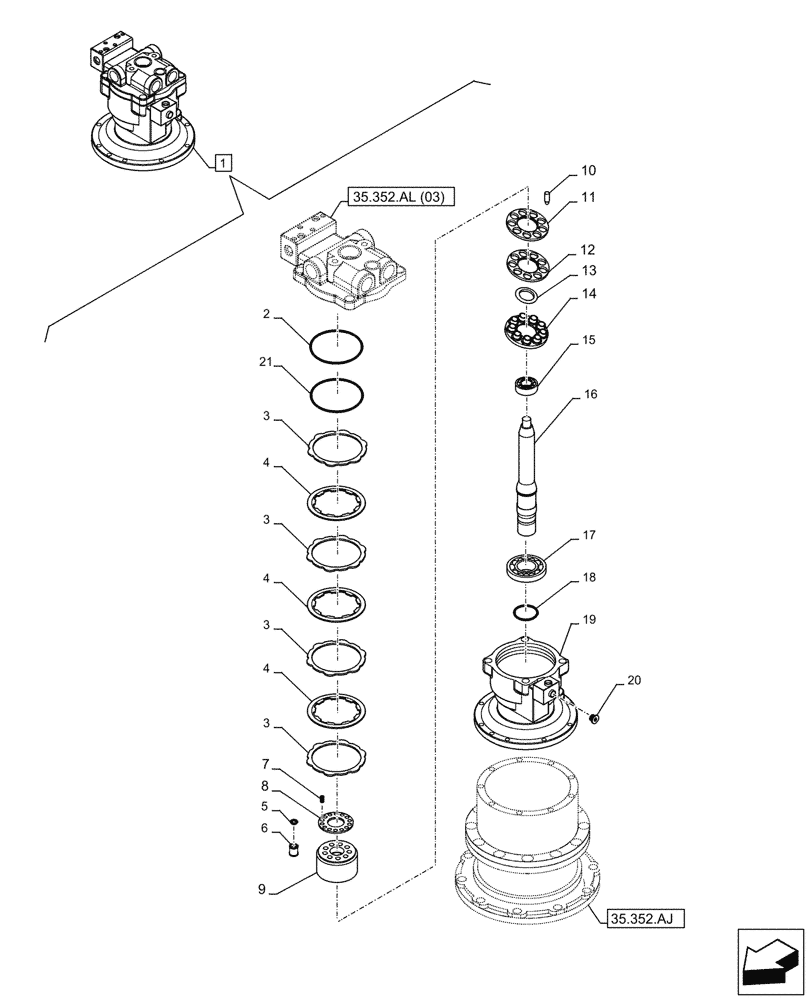

Запчасти Case CX250D LC (35.352.AL[02]) - SWING REDUCTION UNIT, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KBC10020

MOTO-REDUCTION GEAR

ASSY, Incl 2 - 21

1шт.

See also Figure 35.352.AL(03), 35.352.AO

1шт.

1

KBC10020R

REMAN-HYD MOTOR

1шт.

1

KBC10020C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

LE015110

O-RING

1шт.

3

TR00127

ADJUSTING PLATE

4шт.

4

TR00128

PLATE

3шт.

5

LE014720

O-RING

1шт.

6

LJ00748

PISTON

1шт.

7

156099A1

SPRING

14шт.

8

TR00129

PLATE

1шт.

9

TJ00195

BARREL

1шт.

10

LJ023220

PISTON

1шт.

11

TG00069

SPRING

1шт.

12

TR00130

PLATE

1шт.

13

LW005080

BOX

1шт.

14

LR015160

PLATE

1шт.

15

LB011870

BEARING, ROLLER, CYL,25mm ID x 62mm OD x 24mm W

1шт.

16

LB011850

SHAFT

1шт.

17

LB011860

BEARING, ROLLER, CYL,45mm ID x 100mm OD x 25mm W

1шт.

18

CDP0936

OIL SEAL

1шт.

19

LW005090

BOX

1шт.

20

LK005680

PLUG

1шт.

21

LE027930

O-RING

1шт.
