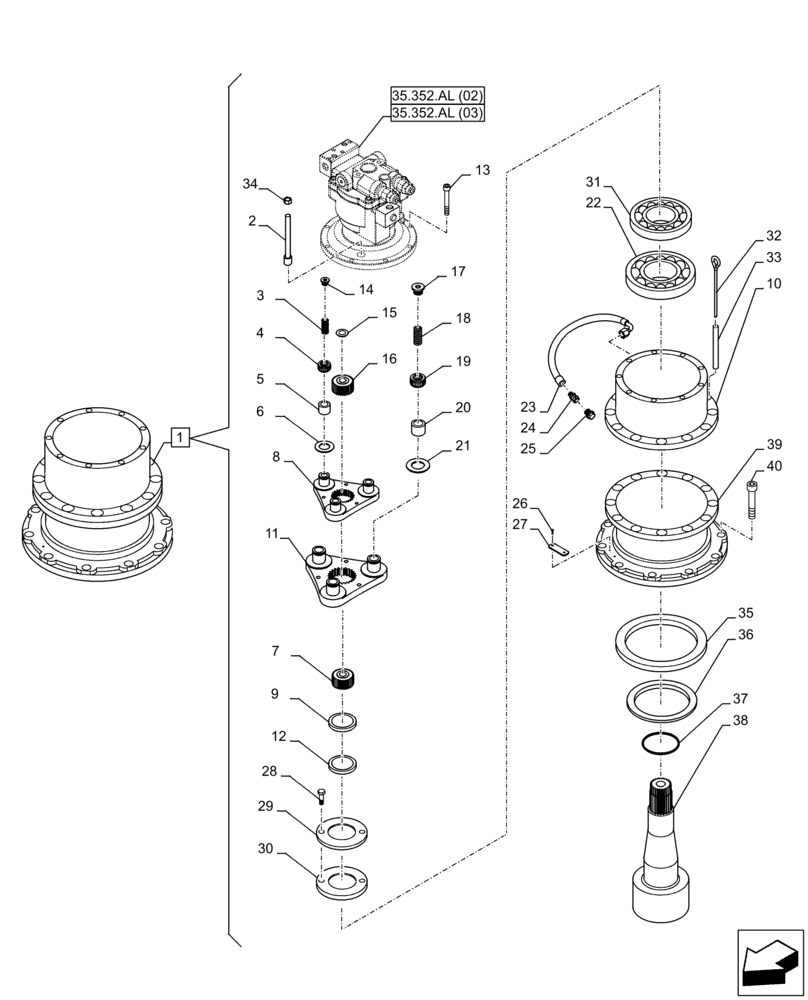

Запчасти Case CX250D LC (35.352.AJ) - MOTO-REDUCTION GEAR, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KBC10030

REDUCER

ASSY, Incl 2 - 40

1шт.

1

KBC10030R

REMAN-REDUCTION UNIT

1шт.

1

KBC10030C

CORE-REDUCTION UNIT

Return Number

1шт.

2

LR014680

HYD TUBE

1шт.

3

738-1632

LOCK PIN,M6 x 32, Slotted

3шт.

4

LC002820

PLANETARY GEAR

3шт.

5

LB011560

NEEDLE BEARING

3шт.

6

LR014740

THRUST PLATE

3шт.

7

LC002800

SUN GEAR

1шт.

8

LN001780

HOUSING

1шт.

9

LR014730

THRUST PLATE

1шт.

10

LC002810

GEAR

1шт.

11

LN001770

HOUSING

1шт.

12

LR014710

THRUST PLATE

1шт.

13

LA010860

BOLT,Spcl

8шт.

14

LA010850

SPECIAL PIN

3шт.

15

800-1140

SNAP RING,M40, Ext

1шт.

16

LC002830

SUN GEAR

1шт.

17

LA010840

SPECIAL PIN

3шт.

18

738-1828

LOCK PIN,M8 x 28, Slotted

3шт.

19

LC002790

PLANETARY GEAR

3шт.

20

LB011550

NEEDLE BEARING

6шт.

21

LR014720

THRUST PLATE

3шт.

22

LB011530

TAPERED BEARING

1шт.

23

LK005570

HOSE

1шт.

24

LR014750

ADAPTER

1шт.

25

LK005580

PLUG

1шт.

26

LV000470

SCREW,Spcl

2шт.

27

LR014760

PLATE

1шт.

28

627-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

2шт.

29

LR014700

PLATE

1шт.

30

LA010830

SPECIAL NUT

1шт.

31

LB011540

TAPERED BEARING

1шт.

32

LM001050

DIPSTICK

1шт.

33

LR014670

HYD TUBE

1шт.

34

LR014690

CAP

12шт.

35

LE013600

OIL SEAL

1шт.

36

LH004720

SLEEVE

1шт.

37

LE013590

O-RING

1шт.

38

LB011520

SHAFT

1шт.

39

LT001600

HOUSING

1шт.

40

108R018Y040N

BOLT

1шт.
