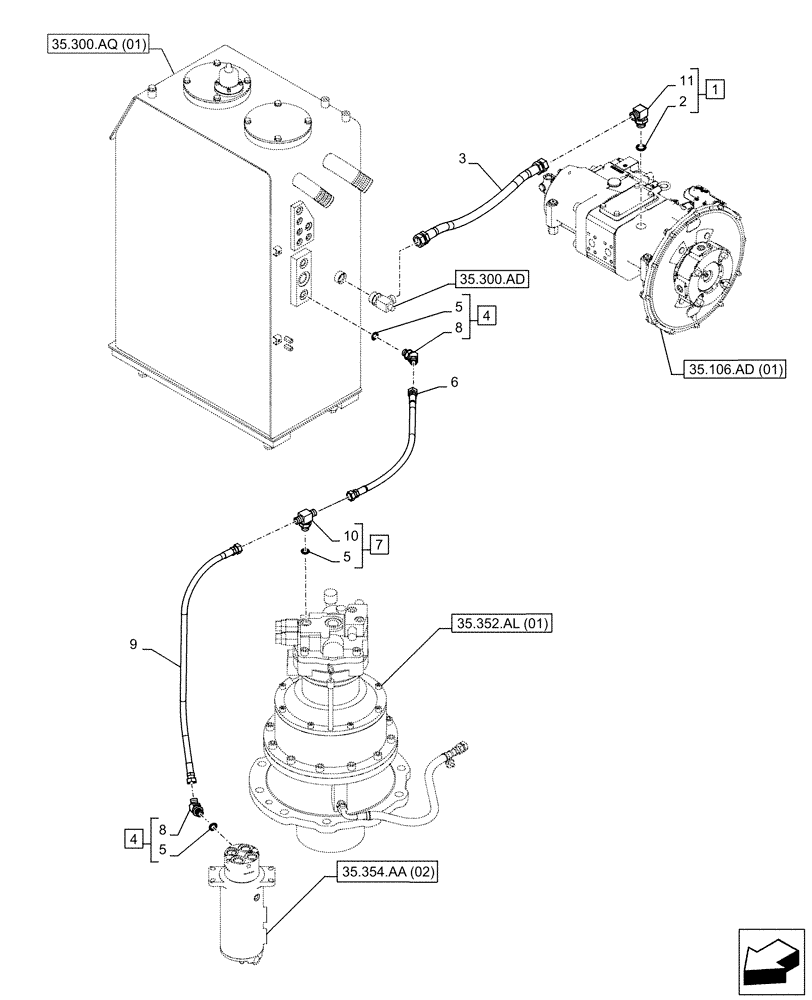

Запчасти Case CX250D LC (35.352.AI[02]) - MOTO-REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS

1

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

ASSY, Incl 2, 11

1шт.

2

154503A1

O-RING

1шт.

3

KBJ19120

HYDRAULIC HOSE

640mm

1шт.

4

157585A1

ELBOW

G1/2 x G1/2, ASSY, Incl 5 (Qty 1), 8

2шт.

5

154487A1

O-RING

3шт.

6

163805A1

HOSE ASSY.

1шт.

7

169309A1

TEE

ASSY, Incl 5 (Qty 1), 10

1шт.

8

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 4

1шт.

9

FAJ0399

HYDRAULIC HOSE

12 x 680mm

1шт.

10

NSS

NOT SOLD SEPARAT

T-Fitting, Incl in 7

1шт.

11

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 1

1шт.
