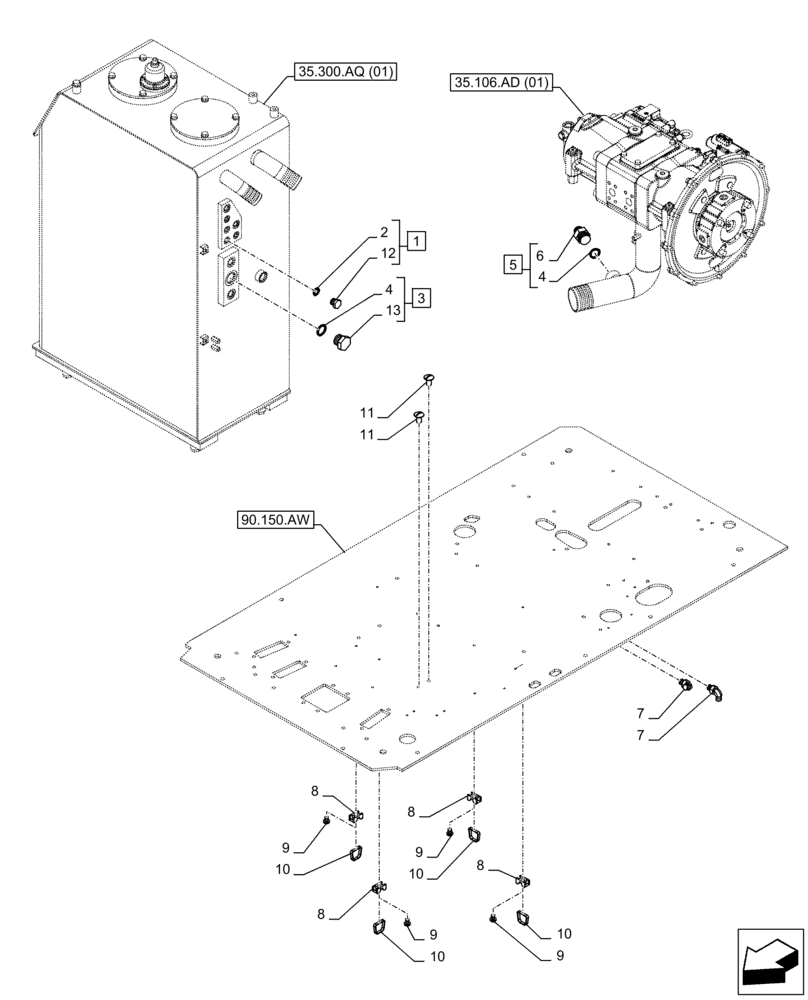

Запчасти Case CX250D LC (35.300.AQ[04]) - VAR - 461871, 461872 - HYDRAULIC OIL RESERVOIR, PLUG DOUBLE ACTING CIRCUIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case CX250D LC - (35.300.AQ[04]) - VAR - 461871, 461872 - HYDRAULIC OIL RESERVOIR, PLUG DOUBLE ACTING CIRCUIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/5274563.png)
9
2
4
11
3
8
10
7
10
35.106.ad (01)
4
10
7
5
8
90.150.aw
10
9
12
8
9
9
1
13
6
35.300.aq (01)
11
8
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
159002A1
PLUG
ASSY, Incl 2, 12
1шт.
2
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
3
162659A1
PLUG
ASSY, Incl 4, 13
1шт.
5
169040A1
ADAPTER
ASSY, Incl 4, 6
1шт.
6
NSS
NOT SOLD SEPARAT
Fitting, Incl in 5
1шт.
7
KHJ28580
ELBOW
2шт.
8
150860A1
COLLAR
4шт.
9
840-168
SCREW,Pan, M6 x 1 x 8mm, Cl 4.8
4шт.
10
150496A1
MOUNTING CLIP
4шт.
11
KHJ15060
CAP
2шт.
12
NSS
NOT SOLD SEPARAT
Plug, Incl in 1
1шт.
13
NSS
NOT SOLD SEPARAT
Plug, Incl in 3
1шт.
Выбрано товаров: 13
