(35.300.AQ[02]) - VAR - 461863 - HYDRAULIC OIL RESERVOIR, PLUG LOW FLOW, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX250D LC (35.300.AQ[02]) - VAR - 461863 - HYDRAULIC OIL RESERVOIR, PLUG LOW FLOW, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

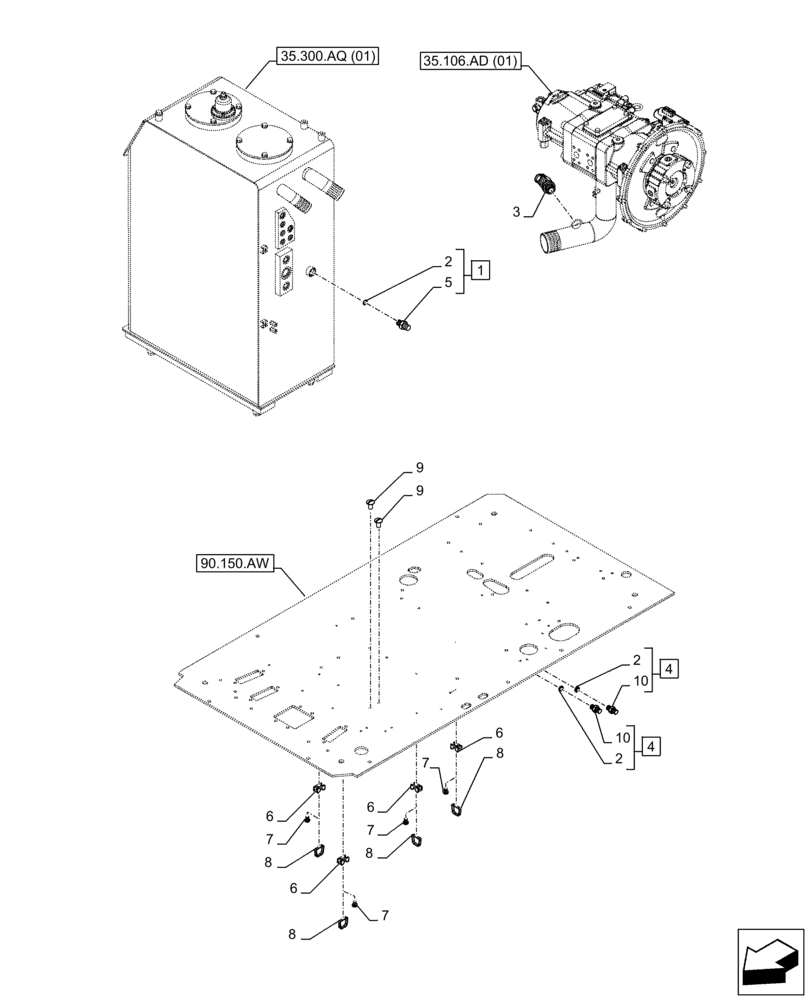

Схема запчастей Case CX250D LC - (35.300.AQ[02]) - VAR - 461863 - HYDRAULIC OIL RESERVOIR, PLUG LOW FLOW, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
7
2
10
6
8
6
2
7
10
9
35.300.aq (01)
4
3
9
2
6
4
35.106.ad (01)
7
7
8
90.150.aw
1
8
8
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 2, 5

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

3

KHJ23010

TEE

1шт.

4

159497A1

TEE

ASSY, Incl 2, 10

2шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

1шт.

6

150860A1

COLLAR

4шт.

7

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

4шт.

8

150496A1

MOUNTING CLIP

4шт.

9

KHJ15060

CAP

2шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

Выбрано товаров: 10
