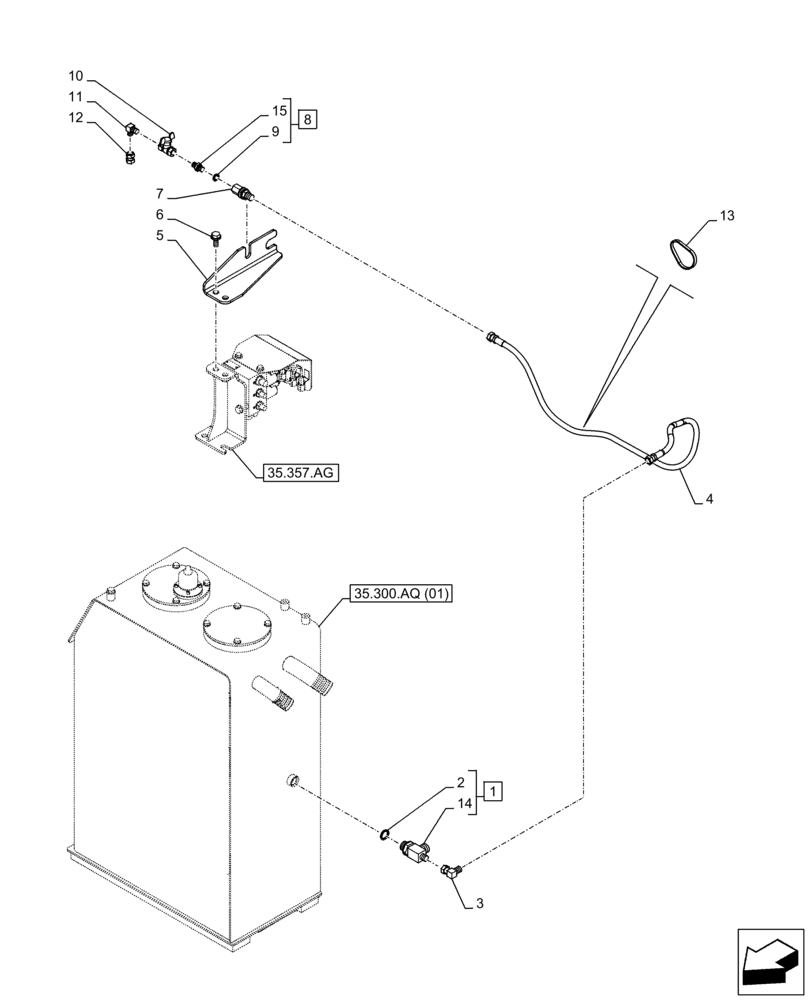

Запчасти Case CX250D LC (35.300.AD) - VAR - 488034 - HYDRAULIC OIL RESERVOIR, DRAIN LINE (35) - HYDRAULIC SYSTEMS

1

KHJ2649

TEE

G3/4" x G3/8" x G3/4", ASSY, Incl 2, 14

1шт.

2

154487A1

O-RING

1шт.

3

153526A1

ELBOW

1шт.

4

165884A1

HYDRAULIC HOSE,9.50 mm ID x 1100.00 mm

1шт.

5

KBJ24310

BRACKET

1шт.

6

166352A1

BOLT

2шт.

7

KHJ0569

ADAPTER

1шт.

8

152899A1

HYD CONNECTOR

ASSY, Incl 9, 15

1шт.

9

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

10

158923A1

DRAIN VALVE

1шт.

11

153596A1

ADAPTER

1шт.

12

158842A1

PLUG

1шт.

13

150496A1

MOUNTING CLIP

1шт.

14

NSS

NOT SOLD SEPARAT

T-Fitting, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

1шт.
