(35.106.AO[01]) - VARIABLE DELIVERY HYDRAULIC PUMP, LINES

Запчасти Case CX250D LC (35.106.AO[01]) - VARIABLE DELIVERY HYDRAULIC PUMP, LINES (35) - HYDRAULIC SYSTEMS

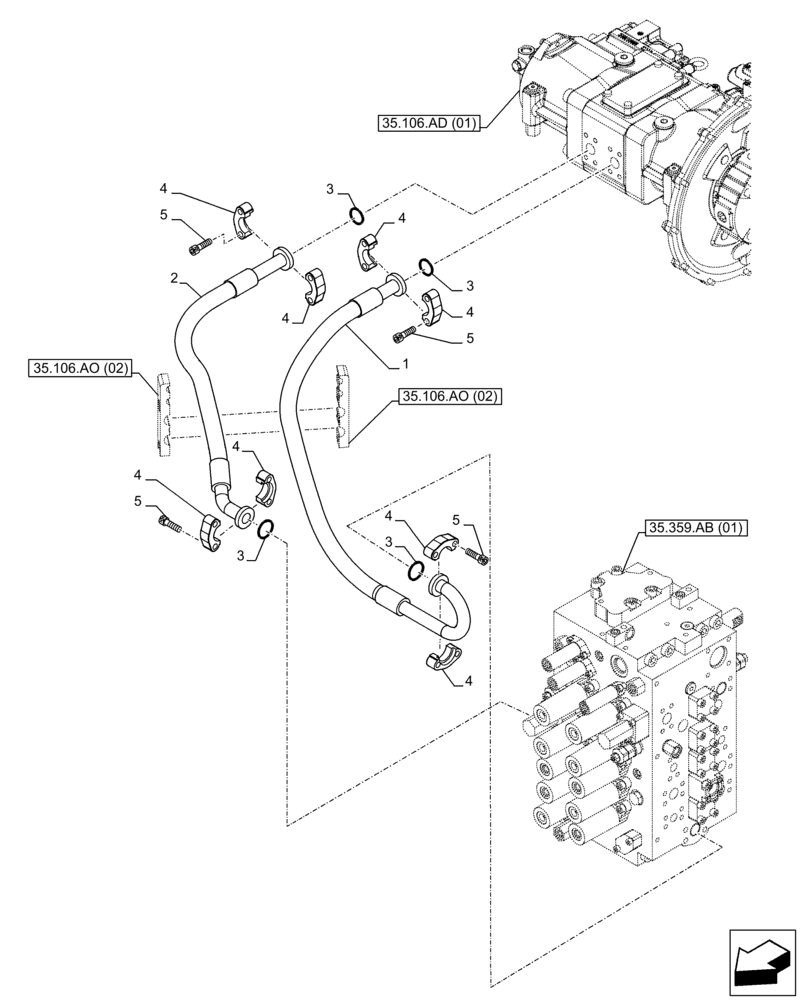

Схема запчастей Case CX250D LC - (35.106.AO[01]) - VARIABLE DELIVERY HYDRAULIC PUMP, LINES (35) - HYDRAULIC SYSTEMS
4
5
4
4
2
5
3
35.106.ad (01)
4
3
4
3
35.106.ao (02)
3
35.359.ab (01)
4
5
4
35.106.ao (02)
4
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBJ18970

HYDRAULIC HOSE

22mm ID x 1210mm

1шт.

2

KBJ22450

HYDRAULIC HOSE

22mm ID x 960mm

1шт.

3

155211A1

O-RING

4шт.

4

150561A1

FLANGE

8шт.

5

862-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

16шт.
