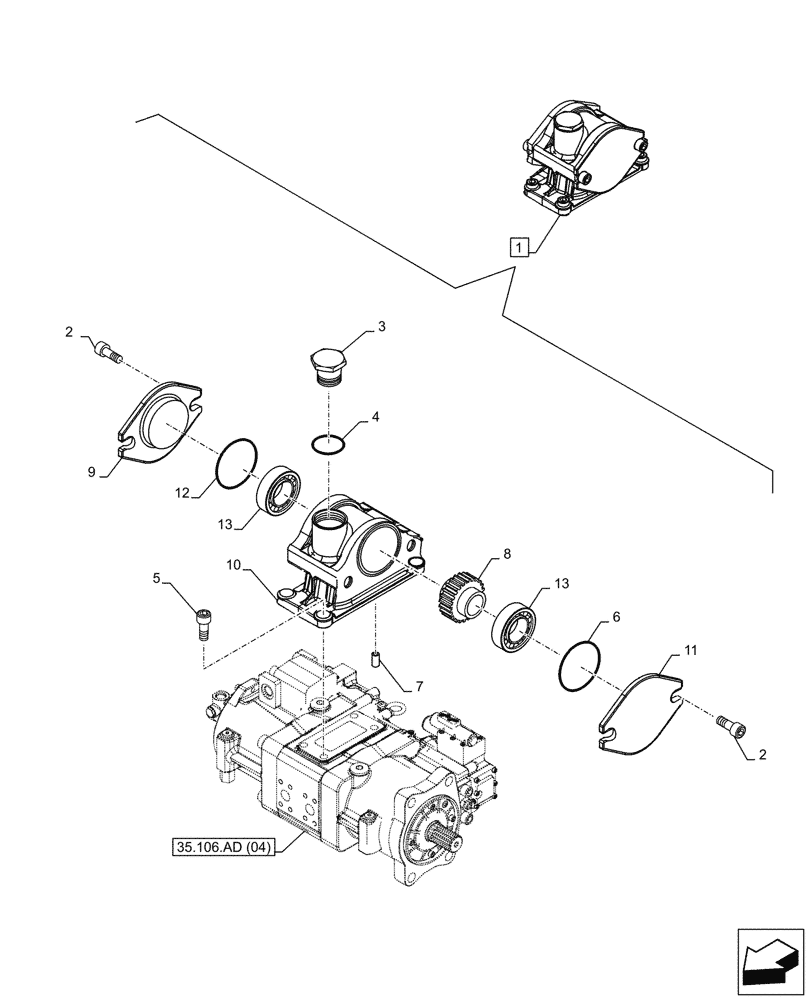

Запчасти Case CX250D LC (35.106.AN) - VAR - 461863 - HYDRAULIC PUMP, PTO, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

LC002860

PUMP

ASSY, Incl 2 - 13

2шт.

See also Figure 35.106.AD (05), 35.106.AD (06), 35.106.AD (07), 35.106.AD (08), 35.357.AC (02)

1шт.

2

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

4шт.

3

155471A1

PLUG

1шт.

4

154503A1

O-RING

1шт.

5

LA00691

BOLT,Hex Skt Hd

4шт.

6

154697A1

O-RING

1шт.

7

LA010900

DOWEL

1шт.

8

NSS

NOT SOLD SEPARAT

Gear, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

12

154689A1

O-RING

1шт.

13

NSS

NOT SOLD SEPARAT

Bearing, Incl in 1

1шт.
