(35.355.090) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE

Запчасти Case CX245D SR LC (35.355.090) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

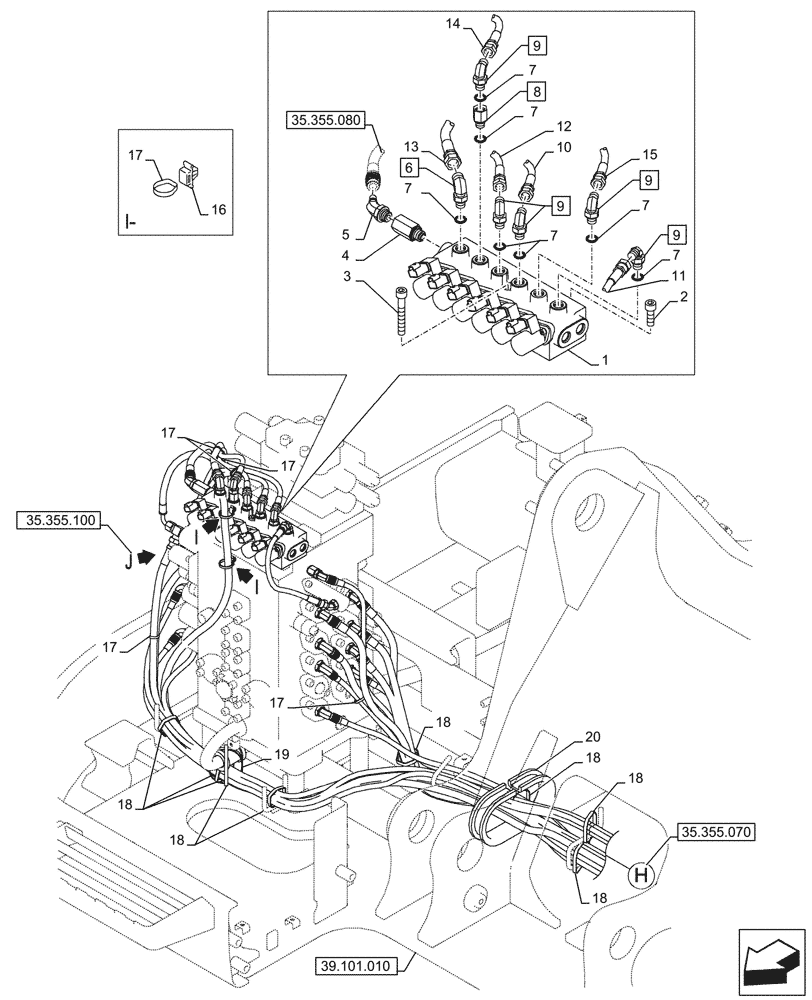

Схема запчастей Case CX245D SR LC - (35.355.090) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS
35.355.080
9
17
7
2
17
10
13
17
18
8
7
17
5
14
18
7
1
18
7
7
9
15
11
7
18
9
20
12
9
6
19
18
16
18
3
4
17
35.355.070
35.355.070
35.355.100
39.101.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ28520

VALVE

1шт.

2

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

M10 x 30mm

3шт.

3

862-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

M10 x 70mm

1шт.

4

AEV10120

STUD

G3/8" x G3/8"

1шт.

5

KHJ38270

ELBOW

G3/8" x 3/8"

1шт.

6

KHJ28710

ELBOW

ASSY, G1/4" x G3/8", Incl 7 (Qty 1)

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

7шт.

8

KHJ13640

STUD

ASSY, G1/4", Incl 7 (Qty 1)

1шт.

9

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 7 (Qty 1)

5шт.

10

KHJ2035

HOSE

6mm ID x 400mm, to Control Valve

1шт.

11

KHJ2044

HOSE,6.3mm ID x 350mm L

6mm ID x 350mm, to Control Valve

1шт.

12

KHJ11180

HYDRAULIC HOSE,6.35 mm ID x 430.00 mm

6mm ID x 350mm, to Control Valve

1шт.

13

KHJ36100

HOSE

9mm ID x 570mm, to Control Valve

1шт.

14

KHJ36690

HOSE

06mm ID x 750mm, to Control Valve

1шт.

15

KHJ2047

HOSE

6mm ID x 650mm, to Control Valve

1шт.

16

KHR10220

MOUNTING CLIP

2шт.

17

150496A1

MOUNTING CLIP

250mm

7шт.

18

150071A1

MOUNTING CLIP

380mm

8шт.

19

KHJ2023

HOSE CLAMP

1шт.

20

KRA0808

SHIELD

L= 520mm

1шт.
