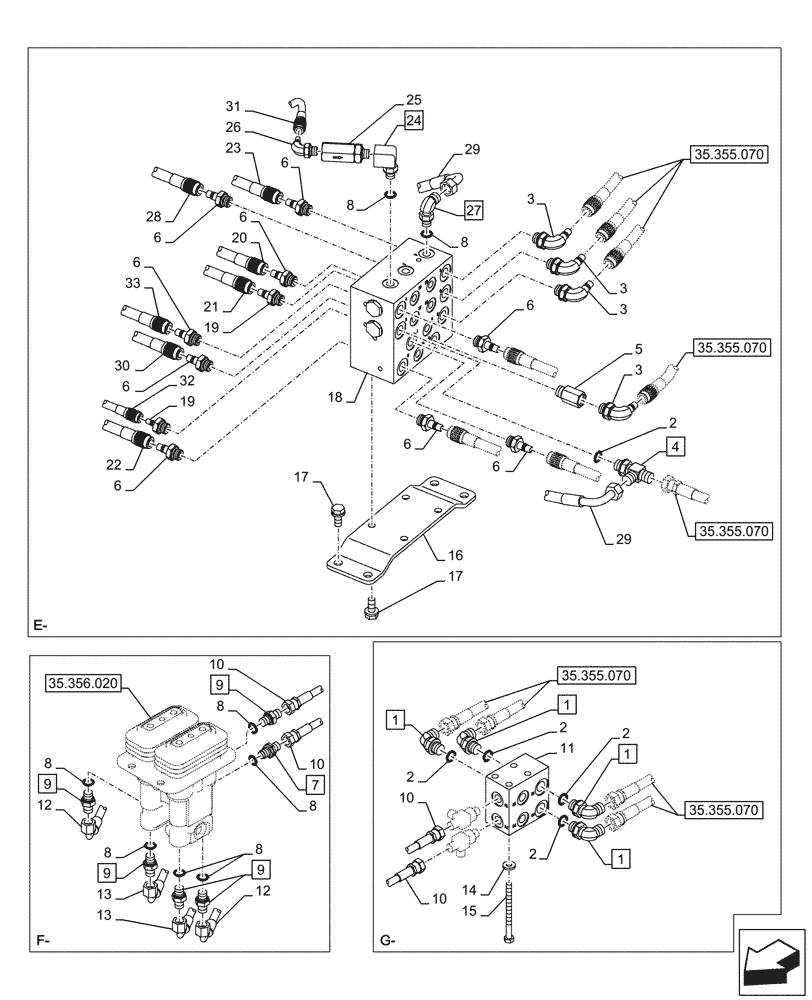

Запчасти Case CX245D SR LC (35.355.080) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

KHJ28590

ELBOW

ASSY, G3/8" x G3/8", Incl 2 (Qty 1)

4шт.

2

154475A1

O-RING

5шт.

3

KHJ38240

ELBOW

G3/8" x 3/8"

4шт.

4

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

ASSY, 3-G3/8", Incl 2 (Qty 1)

1шт.

5

KHV0373

STUD

G3/8" x G3/8" x 42mm

1шт.

6

KHJ38210

ADAPTER

G3/8" x 3/8"

9шт.

7

161841A1

HYD CONNECTOR

ASSY, G1/4" x G1/4", Incl 8

1шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

6шт.

9

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 8 (Qty 1)

5шт.

10

KHJ36110

HOSE

6mm ID x 260mm

1шт.

11

KRJ5903

MANIFOLD

1шт.

12

KHJ38320

HYDRAULIC HOSE

6mm ID x 3000mm, to Control Valve

1шт.

13

KHJ38310

HYDRAULIC HOSE

6mm ID x 2350mm, to Control Valve

1шт.

14

153081A1

WASHER

4шт.

15

828-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

M 8 x 100mm

4шт.

16

KRJ39910

BRACKET

1шт.

17

166052A1

BOLT

M10 x 25mm

8шт.

18

KRJ38520

VALVE

1шт.

19

KHJ38220

ADAPTER

G3/8" x 1/4"

2шт.

20

KHJ38050

HYDRAULIC HOSE

9mm ID x 3250mm, to Control Valve

1шт.

21

KHJ38190

HYDRAULIC HOSE

6mm ID x 3150mm, to cControl Valve

1шт.

22

KHJ38130

HYDRAULIC HOSE

9mm ID x 3850mm, to Valve reducing

1шт.

23

KHJ38040

HYDRAULIC HOSE

9mm ID x 3200mm, to Control Valve

1шт.

24

KHJ0719

ELBOW

ASSY, G1/4" x G1/4", Incl 8 (Qty 1)

1шт.

25

KHJ10790

FILTER SCREEN

1шт.

26

KHJ38230

ELBOW

G1/4" x 1/4"

1шт.

27

KHJ28710

ELBOW

ASSY, G1/4" x G3/8", Incl 8 (Qty 1)

1шт.

28

KHJ38120

HYDRAULIC HOSE

9mm ID x 2650mm, to Control Valve

1шт.

29

KHJ38090

HYDRAULIC HOSE

9mm ID x 2750mm, to Control Valve

1шт.

30

KHJ38100

HYDRAULIC HOSE

9mm ID x 2450mm, to Control Valve

1шт.

31

KHJ38180

HYDRAULIC HOSE

6mm ID x 2800mm, to Control Valve

1шт.

32

KHJ38170

HYDRAULIC HOSE

6mm ID x 2500mm, to Control Valve

1шт.

33

KHJ38110

HYDRAULIC HOSE

9mm ID x 2550mm, to Control Valve

1шт.
