(35.353.040) - TRAVEL MOTOR & REDUCTION GEAR, COMPONENTS

Запчасти Case CX245D SR LC (35.353.040) - TRAVEL MOTOR & REDUCTION GEAR, COMPONENTS (35) - HYDRAULIC SYSTEMS

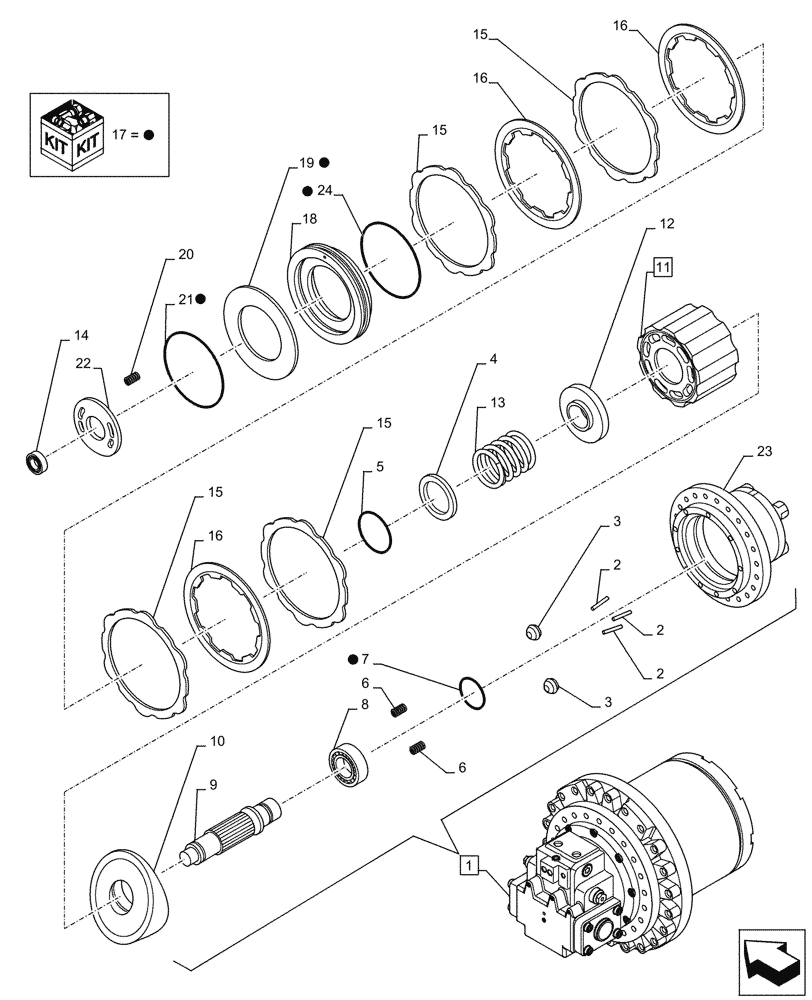

Схема запчастей Case CX245D SR LC - (35.353.040) - TRAVEL MOTOR & REDUCTION GEAR, COMPONENTS (35) - HYDRAULIC SYSTEMS
6
17
18
11
15
9
15
4
14
17
13
15
23
7
3
5
20
16
2
19
17
8
16
16
6
22
2
17
3
12
21
15
2
17
24
17
10
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBA14710

HYDRAULIC MOTOR

ASSY, Incl 2 - 24

1шт.

See also figure 35.353.010, 35.353.020, 35.353.030, 35.353.050

1шт.

2

155631A1

COTTER PIN

3шт.

3

155950A1

BALL

2шт.

4

158113A1

COLLAR

1шт.

5

160103A1

RING, SNAP

1шт.

6

160592A1

SPRING

2шт.

7

LE014680

OIL SEAL

1шт.

8

LB00546

BEARING,50mm ID x 90mm OD x 20mm W

1шт.

9

LB00545

SHAFT

1шт.

10

LR015070

PLATE

1шт.

11

LS003330

BARREL

ASSY, Incl 2, 4, 5, 12 - 13

1шт.

12

160203A1

SPRING SEAT

1шт.

13

160590A1

SPRING

1шт.

14

LB00547

BEARING,35mm ID x 72mm OD x 17mm W

1шт.

15

LR00582

PLATE

4шт.

16

165696A1

PLATE

3шт.

17

LZ011370

KIT

1шт.

See also figure 35.353.040, 35.353.050, 35.353.020

1шт.

18

LJ014600

PISTON

1шт.

19

165720A1

OIL SEAL

1шт.

20

156090A1

SPRING

8шт.

21

155220A1

O-RING

1шт.

22

LR015030

PLATE

1шт.

23

NSS

NOT SOLD SEPARAT

Body, Incl in 1

3шт.

24

165721A1

SEALING RING

1шт.
