(35.352.070) - VAR - 461568 - MOTO-REDUCTION GEAR, LINES, FREE SWING

Запчасти Case CX245D SR LC (35.352.070) - VAR - 461568 - MOTO-REDUCTION GEAR, LINES, FREE SWING (35) - HYDRAULIC SYSTEMS

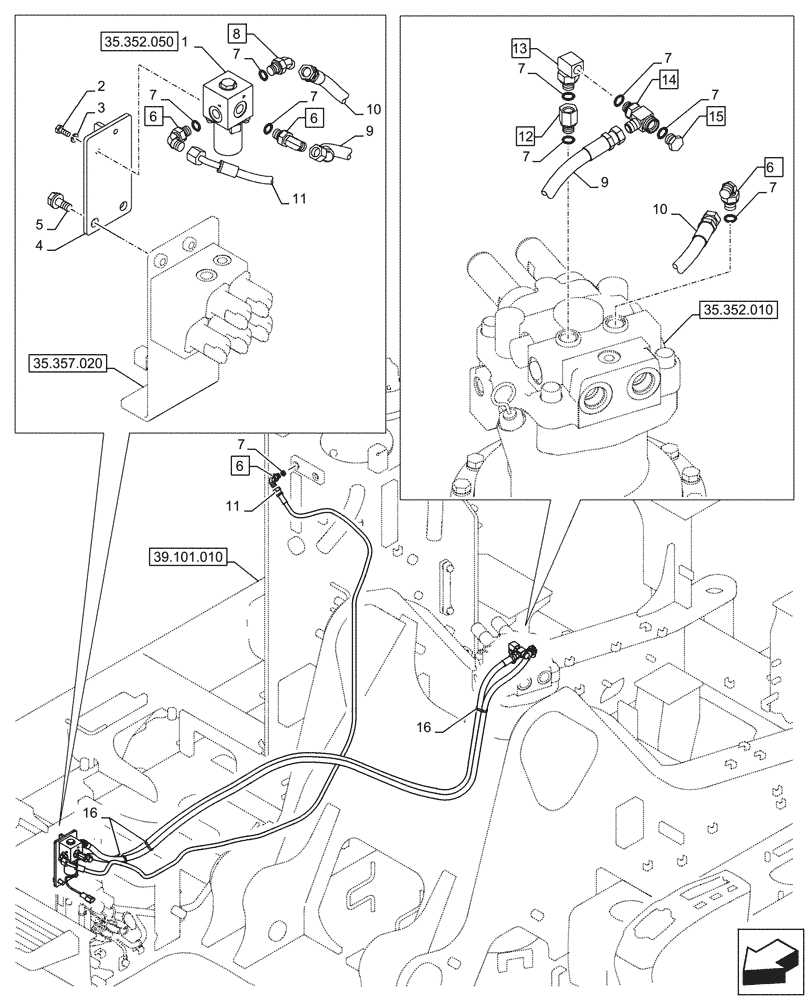

Схема запчастей Case CX245D SR LC - (35.352.070) - VAR - 461568 - MOTO-REDUCTION GEAR, LINES, FREE SWING (35) - HYDRAULIC SYSTEMS
35.357.020
7
8
7
9
6
9
5
7
1
7
10
7
11
7
6
10
13
2
7
6
7
14
16
16
15
11
3
12
7
6
4
35.352.050
39.101.010
35.352.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

159205A1

VALVE

ASSY

1шт.

2

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

M6 x 16mm

2шт.

3

183-106VR

SPRING WASHER

2шт.

4

KRJ39330

BRACKET

1шт.

5

166052A1

BOLT

M10 x 25mm

2шт.

6

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 7 (Qty 1)

4шт.

7

150960A1

O-RING,10.8mm ID x 2.4mm Width

9шт.

8

KHJ28630

ELBOW

ASSY, G1/4" x G1/4", Incl 7 (Qty 1)

1шт.

9

KHV13060

HYDRAULIC HOSE

From Mortor Swing to Solenoid Valve

1шт.

10

KHV13390

HYDRAULIC HOSE

From Mortor Swing to Solenoid Valve

1шт.

11

KRJ42530

HOSE

From Oil Tank to Solenoid Valve

1шт.

12

KHJ13640

STUD

ASSY, G1/4", Incl 7 (Qty 1)

1шт.

13

166573A1

ELBOW

ASSY, Incl 7 (Qty 1)

1шт.

14

KHJ11640

ORIFICE

ASSY, Incl 7 (Qty 1)

1шт.

15

159002A1

PLUG

ASSY, G1/4", Incl 7 (Qty 1)

1шт.

16

150496A1

MOUNTING CLIP

250mm

3шт.
