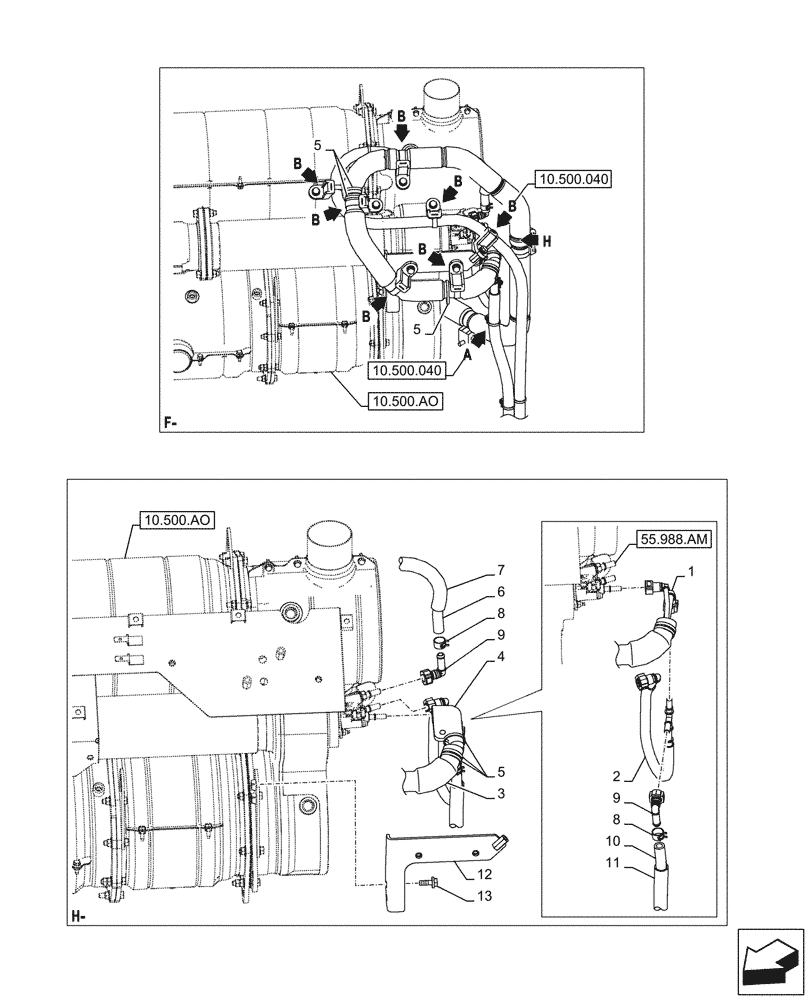

Запчасти Case CX245D SR LC (10.500.060) - DEF/ADBLUE™ LINES (10) - ENGINE

1

KRH18410

PIPE

From Muffler to Electronic Control Unit

1шт.

2

KRH21130

PIPE

From Injector Valve to Muffler

1шт.

3

KHH18050

INSULATION

160mm ID x 500mm

1шт.

4

KHH17010

INSULATION

1шт.

5

150496A1

MOUNTING CLIP

250mm

1шт.

6

KHH21320

HOSE

L=2900mm, From Tank Urea to Muffler

1шт.

7

KHH21360

TUBE

19mm ID x 2800mm, From Tank Urea to Muffler

1шт.

8

KHH16800

BAND

2шт.

9

KHH15490

ELBOW

2шт.

10

KHH18020

HOSE

11mm ID x 2500mm, From Engine to Muffler

1шт.

11

KHR12740

PLASTIC-RUBBER TUBE

19mm ID x 2400mm, From Engine to Muffler

1шт.

12

KRH21490

BRACKET

1шт.

13

167182A1

BOLT,Sems, M8 x 25mm

1шт.
