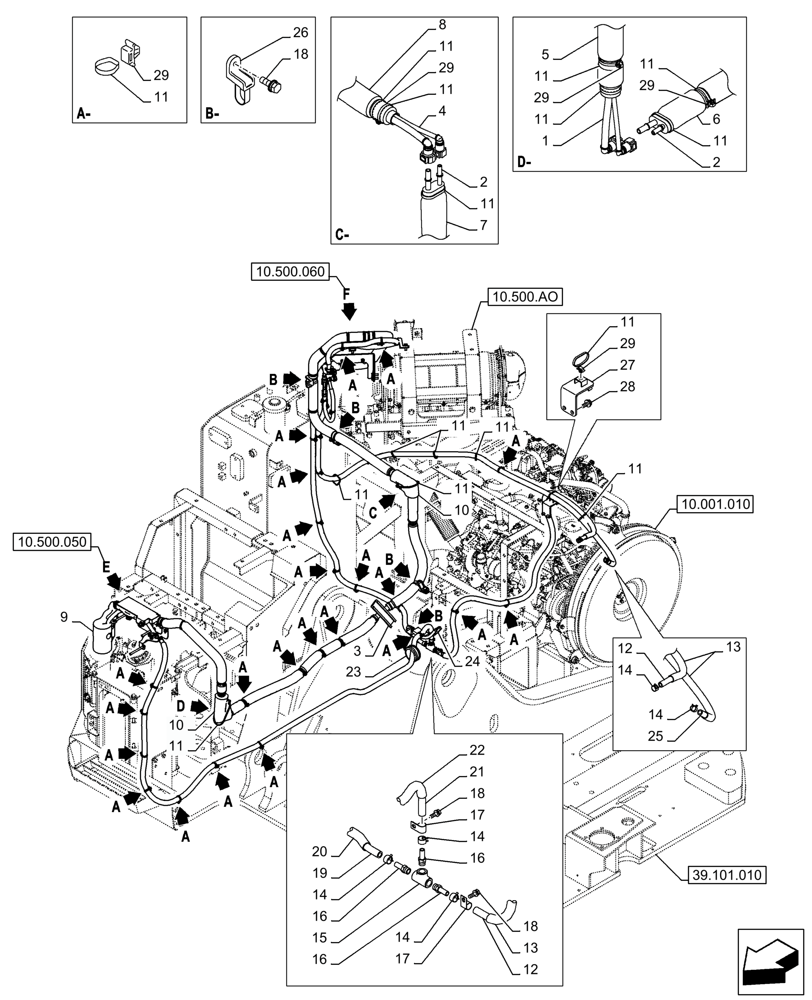

Запчасти Case CX245D SR LC (10.500.040) - DEF/ADBLUE™ LINES (10) - ENGINE

1

KRH21030

PIPE

From Muffler to Electronic Control Unit

1шт.

2

KRH18400

PIPE

From Muffler to Electronic Control Unit

1шт.

3

KAJ5122

FLEXIBLE SHEATH

L=215mm

1шт.

4

KRH18410

PIPE

From Muffler to Electronic Control Unit

1шт.

5

KHH21380

INSULATION

160mm ID x 650mm

1шт.

6

KHH19630

INSULATION

160mm ID x 950mm

1шт.

7

KHH19710

INSULATION

160mm ID x 700mm

1шт.

8

KHH17970

INSULATION

160mm ID x 1400mm

1шт.

9

KHH21310

INSULATION

1шт.

10

KHH19480

INSULATION

2шт.

11

150496A1

MOUNTING CLIP

250mm

1шт.

12

KHH19790

HOSE

L=1900mm, From Engine to Muffler

1шт.

13

KHR12740

PLASTIC-RUBBER TUBE

19mm ID x 1800mm, From Engine to Muffler

2шт.

14

KHH16800

BAND

5шт.

15

152137A1

TEE

3/8"

1шт.

16

KRR21150

NIPPLE

3шт.

17

162149A1

COLLAR

2шт.

18

KHJ1215

BOLT,Spcl

M8 x 25mm

14шт.

19

KHH21320

HOSE

L=2900mm, From Tank Urea to Muffler

1шт.

20

KHH21360

TUBE

19mm ID x 2800mm, From Tank Urea to Muffler

1шт.

21

KHH21330

HOSE

L=3000mm, From Tank Urea to Muffler

1шт.

22

KHR3247

PLASTIC-RUBBER TUBE

19mm ID x 2900mm, From Tank Urea to Muffler

1шт.

23

167262A1

GROMMET

1шт.

24

KAJ5120

FLEXIBLE SHEATH

L=180mm

1шт.

25

KHH18020

HOSE

11mm ID x 2500mm, From Engine to Muffler

1шт.

26

KHR2581

CLAMP

M8

12шт.

27

KRH19300

BRACKET

1шт.

28

166350A1

BOLT

M8 x 20mm

1шт.

29

KHR10220

MOUNTING CLIP

1шт.
