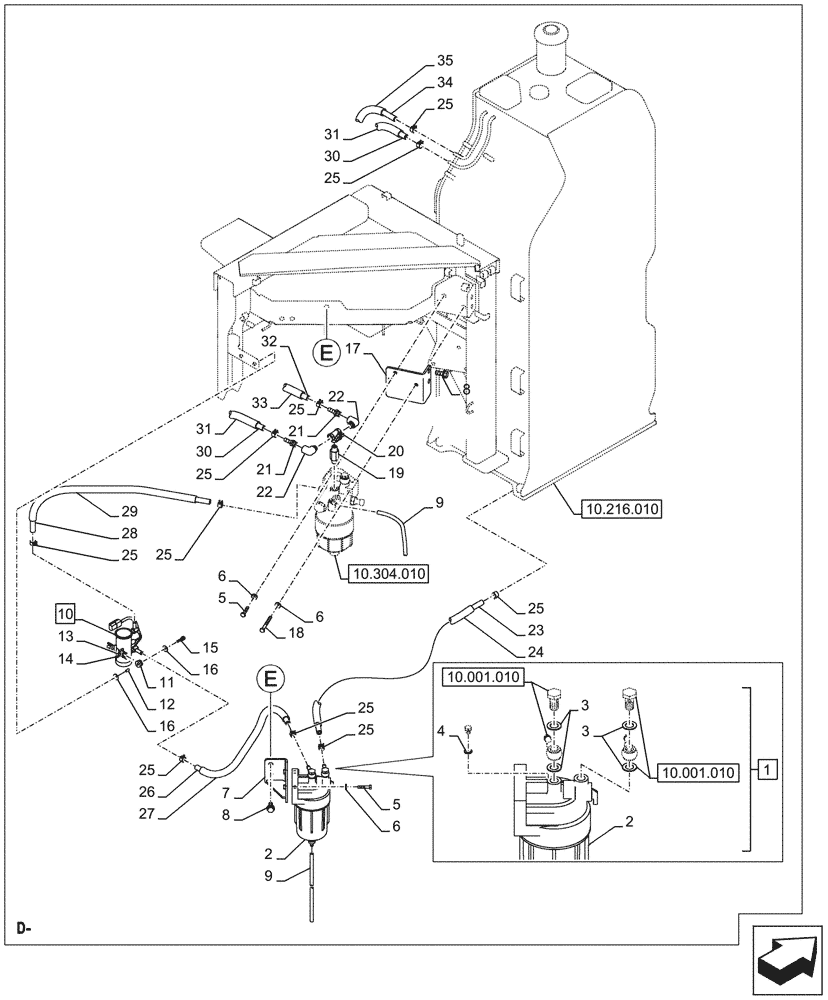

Запчасти Case CX245D SR LC (10.216.030) - FUEL FILTER & FUEL TRANSFER PUMP (10) - ENGINE

1

KHH15160

FILTER ASSY

ASSY, 2 - 35

1шт.

2

KHH12030

FUEL FILTER

1шт.

3

158678A1

GASKET

4шт.

4

158676A1

GASKET

1шт.

5

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

M8 x 40mm

4шт.

6

153081A1

WASHER

5шт.

7

KRH21680

BRACKET

1шт.

8

166352A1

BOLT

M12 x 30mm

4шт.

9

KHH15190

PLASTIC-RUBBER TUBE

L=1200mm

2шт.

10

KHH11880

FEED PUMP

ASSY, Incl 11 - 14

1шт.

11

KHH10470

GROMMET

2шт.

12

KHH10480

COLLAR

2шт.

13

KHH11890

FILTER SCREEN

1шт.

14

KHH11900

GASKET

1шт.

15

162056A1

BOLT,Spcl, M6 x 30mm

2шт.

16

150529A1

WASHER

21.5mm

4шт.

17

KRH21750

BRACKET

1шт.

18

102R008Y075R

BOLT

M8 x 75mm

1шт.

19

KHH18560

NIPPLE

M16 x 1.5

1шт.

20

KHH15171

COCK

1шт.

21

151252A1

NIPPLE, LUBE

2шт.

22

152159A1

ELBOW

2шт.

23

KHH12450

FUEL HOSE

L=1800mm, From Fuel Tank to Fuel Filter

1шт.

24

KHR3340

PLASTIC-RUBBER TUBE

19mm ID x 1700mm, From Fuel Tank to Fuel Filter

1шт.

25

KHH0405

MOUNTING CLIP

9шт.

26

KHH14970

HOSE

L=550mm, From Fuel Filter to Feed Pump

1шт.

27

158060A1

PLASTIC-RUBBER TUBE

19mm ID x 500mm, From Fuel Filter to Feed Pump

1шт.

28

KHH11020

HYDRAULIC HOSE,9.70 mm ID x 750.00 mm

750mm, From Fuel Filter to Feed Pump

1шт.

29

KHR33660

PROTECTIVE SLEEVE

19mm ID x 650mm, From Fuel Filter to Feed Pump

1шт.

30

KHH10170

HOSE

L=1600mm, From Fuel Tank to Fuel Filter

1шт.

31

KHR48630

TUBE

19mm ID x 1550mm, From Fuel Tank to Fuel Filter

1шт.

32

KHH15930

HOSE

1500mm, From Fuel Filter to Engine

1шт.

33

KHR32600

FLEXIBLE SHEATH

19mm ID x 1450mm, From Fuel Filter to Engine

1шт.

34

KHH21400

HOSE

L=4650mm, From Fuel Tank to Radiator

1шт.

35

KHR48620

TUBE

19mm ID x 4550mm, From Fuel Tank to Radiator

1шт.
