(10.216.020) - FUEL LINE

Запчасти Case CX245D SR LC (10.216.020) - FUEL LINE (10) - ENGINE

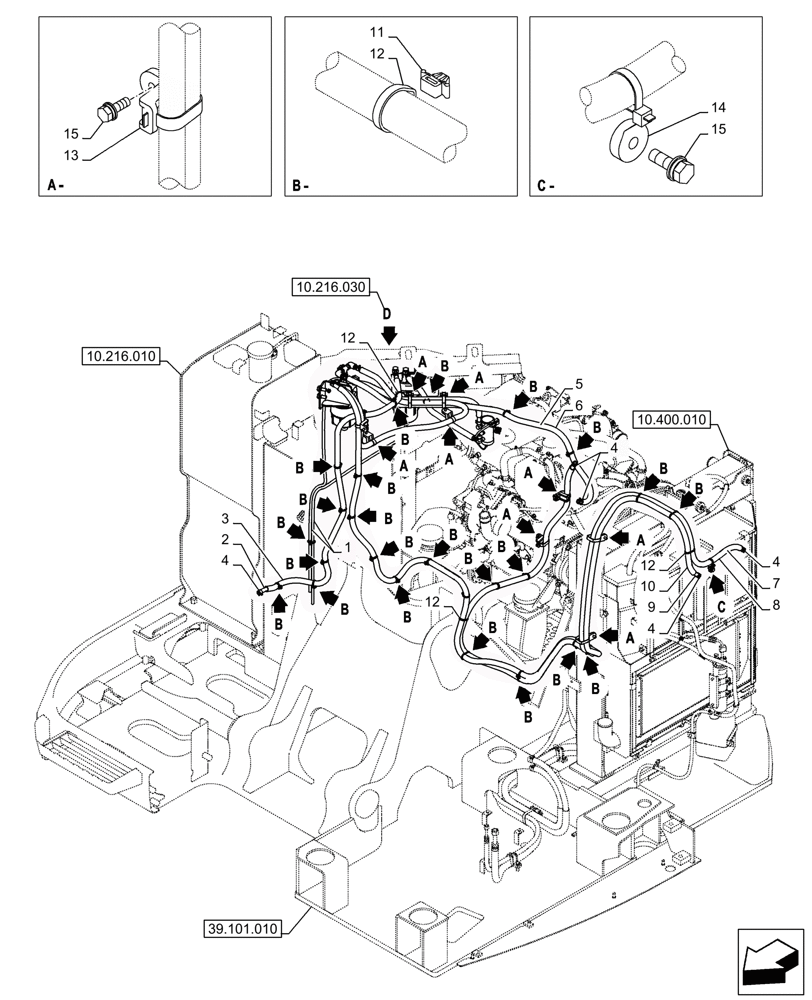

Схема запчастей Case CX245D SR LC - (10.216.020) - FUEL LINE (10) - ENGINE
10.400.010
12
12
14
15
12
4
7
10
3
1
2
8
4
13
4
9
11
12
5
4
15
6
10.216.030
10.216.010
39.101.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHH15190

PLASTIC-RUBBER TUBE

L=1200mm

2шт.

2

KHH12450

FUEL HOSE

L=1800mm, From Fuel Tank to Fuel Filter

1шт.

3

KHR3340

PLASTIC-RUBBER TUBE

19mm ID x 1700mm, From Fuel Tank to Fuel Filter

1шт.

4

KHH0405

MOUNTING CLIP

5шт.

5

KHH15930

HOSE

1500mm, From Fuel Filter to Engine

1шт.

6

KHR32600

FLEXIBLE SHEATH

19mm ID x 1450mm, From Fuel Filter to Engine

1шт.

7

KHH21390

HOSE

L=4300mm, From Engine to Radiator

1шт.

8

KHR16250

PLASTIC-RUBBER TUBE

19mm ID x 4200mm, From Engine to Radiator

1шт.

9

KHH21400

HOSE

L=4650mm, From Fuel Tank to Radiator

1шт.

10

KHR48620

TUBE

19mm ID x 4550mm, From Fuel Tank to Radiator

1шт.

11

KHR10220

MOUNTING CLIP

1шт.

12

150496A1

MOUNTING CLIP

250mm

1шт.

13

KHR2581

CLAMP

M8

1шт.

14

KHR2584

CLAMP

1шт.

15

KHJ1215

BOLT,Spcl

M8 x 25mm

10шт.
