(35.737.030) - VAR - 481064 - ARM, LIFT, CYLINDER, SAFETY VALVE

Запчасти Case CX245D SR LC (35.737.030) - VAR - 481064 - ARM, LIFT, CYLINDER, SAFETY VALVE (35) - HYDRAULIC SYSTEMS

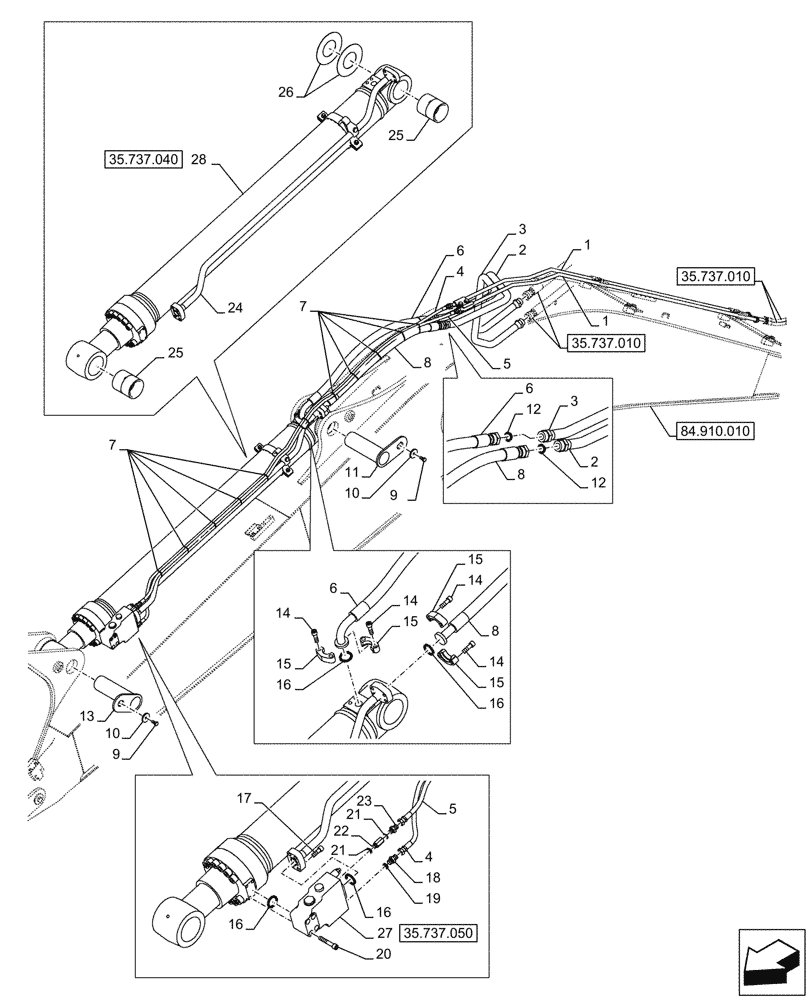

Схема запчастей Case CX245D SR LC - (35.737.030) - VAR - 481064 - ARM, LIFT, CYLINDER, SAFETY VALVE (35) - HYDRAULIC SYSTEMS
35.737.040
9
12
19
14
6
14
18
10
15
7
25
8
14
17
22
15
14
5
3
16
4
21
8
10
16
16
27
1
15
26
21
16
13
20
24
23
9
1
6
15
11
25
4
6
8
2
5
3
12
28
7
35.737.050
35.737.010
35.737.010
2
84.910.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRV45710

PIPE

1шт.

2

KRV47940

PIPE

1шт.

3

KRV47950

PIPE

1шт.

4

KHJ22730

HYDRAULIC HOSE

27mm

1шт.

5

KHJ20030

HYDRAULIC HOSE

26mm

1шт.

6

KRV40210

HYDRAULIC HOSE

25mm ID x 15mm

1шт.

7

150067A1

MOUNTING CLIP

15mm

12шт.

8

KRV40200

HYDRAULIC HOSE

25mm ID x 1mm

1шт.

9

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

10

157141A1

WASHER

2шт.

11

KRV10981

PIN

1шт.

12

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

13

KRV32521

PIN

1шт.

14

862-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

M12 x 4mm

4шт.

15

150561A1

FLANGE

2шт.

16

162246A1

O-RING

2шт.

17

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

4шт.

18

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8" x G3/8", Incl 19

1шт.

19

150031A1

O-RING,10mm ID x 24mm OD

1шт.

20

862-12070

HEX SOC SCREW,M12 x 70mm, Cl 12.9

4шт.

21

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

22

162525A1

STUD

ASSY, G1/4" x G1/4", Incl 21

1шт.

23

152747A1

ADAPTER

ASSY, G1/4" x G3/8", Incl 21

1шт.

24

KRV43220

PIPE

1шт.

25

KRV2400

SELF LUB RING

1шт.

26

158691A1

WASHER

2шт.

27

KSV17260

SAFETY VALVE

ASSY

1шт.

28

KRV47850

HYDRAULIC CYLINDER

ASSY

1шт.
