Запчасти Case CX245D SR LC (35.360.280) - VAR - 461869 - HAMMER DIRECTIONAL CONTROL VALVE, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

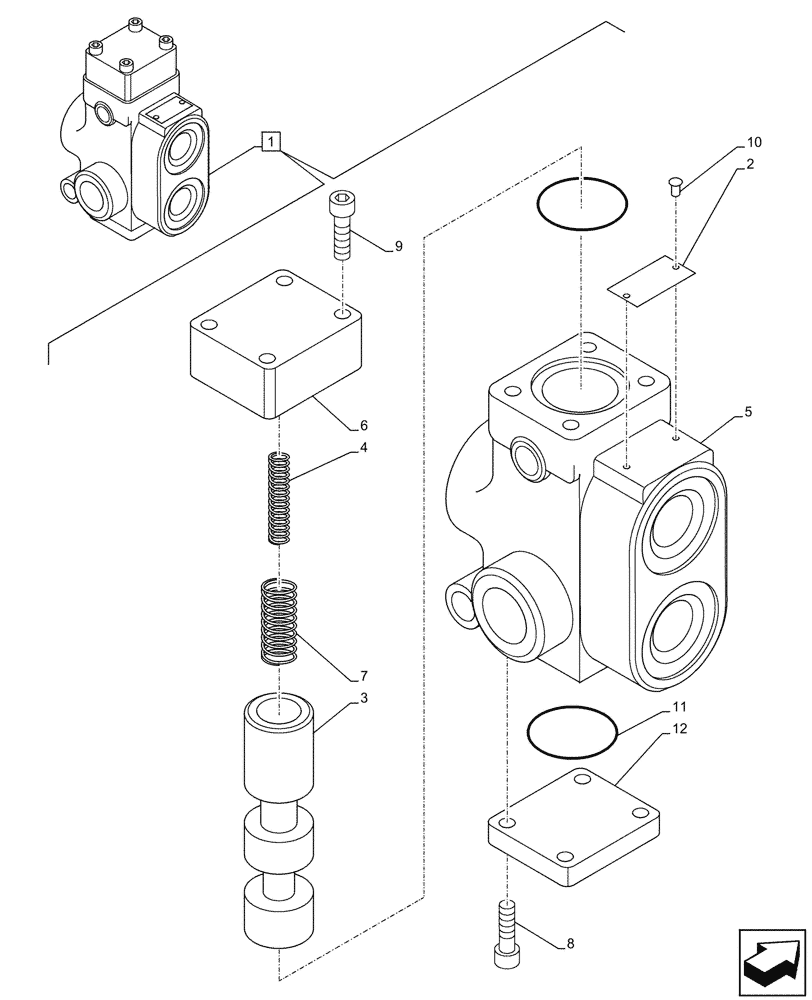

Схема запчастей Case CX245D SR LC - (35.360.280) - VAR - 461869 - HAMMER DIRECTIONAL CONTROL VALVE, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
11
8
1
2
3
12
5
9
10
7
6
4

Артикул

Название

Примечание

Количество

1

KHJ10420

VALVE SECTION

ASSY, Incl 2 - 12

1шт.

2

NSS

NOT SOLD SEPARAT

Nameplate, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

4

LG005800

COMPRESSION SPRING

1шт.

5

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

6

LW004970

COVER

1шт.

7

LG005810

COMPRESSION SPRING

1шт.

8

108R008Y025N

BOLT

4шт.

9

108R008Y045R

BOLT

4шт.

10

LA00769

RIVET

2шт.

11

154569A1

O-RING

2шт.

12

LW004960

COVER

1шт.

Выбрано товаров: 12
