(35.360.120) - HAMMER CIRCUIT, LINES

Запчасти Case CX245D SR LC (35.360.120) - HAMMER CIRCUIT, LINES (35) - HYDRAULIC SYSTEMS

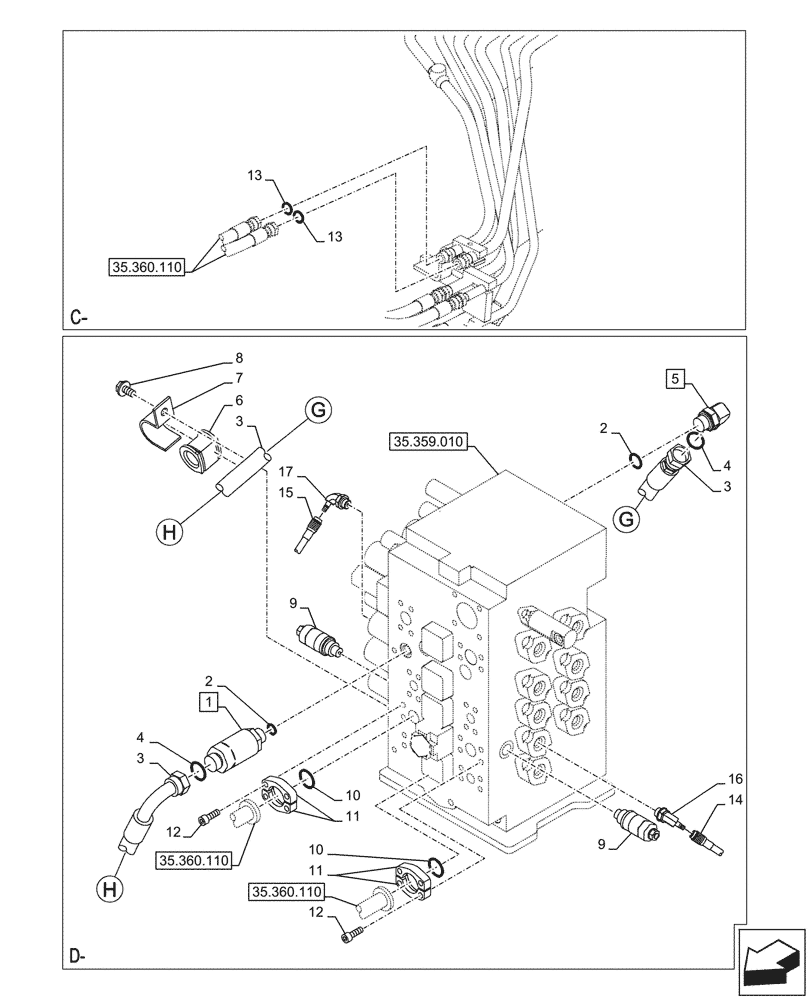

Схема запчастей Case CX245D SR LC - (35.360.120) - HAMMER CIRCUIT, LINES (35) - HYDRAULIC SYSTEMS
35.360.110
13
13
14
7
4
12
9
16
3
10
10
9
8
2
6
3
5
11
1
3
11
2
12
4
17
15
35.359.010
35.360.110
35.360.110
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ10480

VALVE SECTION

ASSY, Incl 2 (Qty 1)

1шт.

2

150542A1

O-RING

2шт.

3

KRJ43040

HYDRAULIC HOSE

19mm ID x 121mm

1шт.

4

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

5

KHJ1804

ELBOW

ASSY, G3/4" x 13/16", Incl 2 (Qty 1)

1шт.

6

KHJ2680

COLLAR CLAMP

1шт.

7

KBJ11860

SUPPORT

1шт.

8

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

9

158257A1

VALVE, PRESSURE RELI

2шт.

10

162246A1

O-RING

2шт.

11

153459A1

FLANGE

4шт.

12

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

M1 x 3mm

8шт.

13

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

14

KHJ38480

6mm ID x 23mm, From Control Valve to Solenoid valve

HYDRAULIC HOSE

1шт.

15

KHJ38340

6mm ID x 29mm, From Control Valve to Solenoid valve

HYDRAULIC HOSE

1шт.

16

KHJ38280

ELBOW

G3/8" x 1/4"

1шт.

17

KHJ38250

ELBOW

G3/8" x 1/4"

1шт.
