Запчасти Case CX245D SR LC (35.360.110) - HAMMER CIRCUIT, LINES (35) - HYDRAULIC SYSTEMS

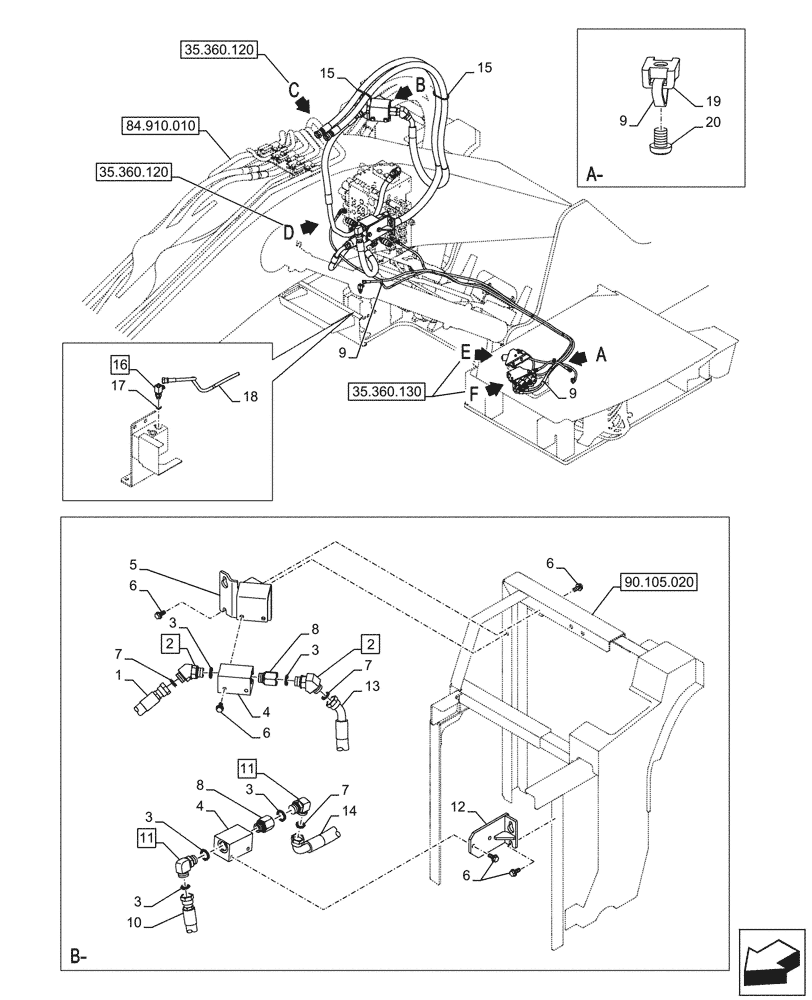

Схема запчастей Case CX245D SR LC - (35.360.110) - HAMMER CIRCUIT, LINES (35) - HYDRAULIC SYSTEMS
35.360.120
13
11
3
15
20
6
9
2
6
16
15
19
8
9
2
7
17
18
6
8
3
9
7
1
14
6
4
5
4
3
12
11
3
10
7
3
35.360.130
84.910.010
90.105.020
35.360.120

Артикул

Название

Примечание

Количество

1

KRJ43050

HYDRAULIC HOSE

25mm ID x 84mm, From Manifold to Control Valve

1шт.

2

KHJ11370

ELBOW

ASSY, Incl 3 (Qty 1)

2шт.

3

152211A1

O-RING

5шт.

4

KRJ12170

MANIFOLD VALVE

2шт.

5

KRJ43950

BRACKET

1шт.

6

166352A1

BOLT

M12 x 3mm

5шт.

7

KHJ1361

O-RING,0.07" Thk x 0.926" ID

3шт.

8

KHJ34260

BUSHING

G1" x G1"

1шт.

9

150496A1

MOUNTING CLIP

25mm

4шт.

10

KRJ42930

HYDRAULIC HOSE

25mm ID x 8mm

1шт.

11

KHJ1805

ELBOW

ASSY, G1" x 17/16", Incl 12

2шт.

12

KRJ43960

BRACKET

1шт.

13

KRJ42990

25mm ID x 272mm, From Manifold to Boom

HYDRAULIC HOSE

1шт.

14

KRJ43980

25mm ID x 256mm, From Manifold to Boom

HYDRAULIC HOSE

1шт.

15

150071A1

MOUNTING CLIP

38mm

2шт.

16

KHJ2773

TEE

ASSY, G1/4", Incl 17

1шт.

17

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

18

KHJ24420

HYDRAULIC HOSE

6mm ID x 255mm, From Manifold to Solenoid Valve

1шт.

19

150860A1

COLLAR

1шт.

20

145N006S008R

SCREW,Pan Hd, M6 x 8mm, Cl 10.9

1шт.

Выбрано товаров: 20
