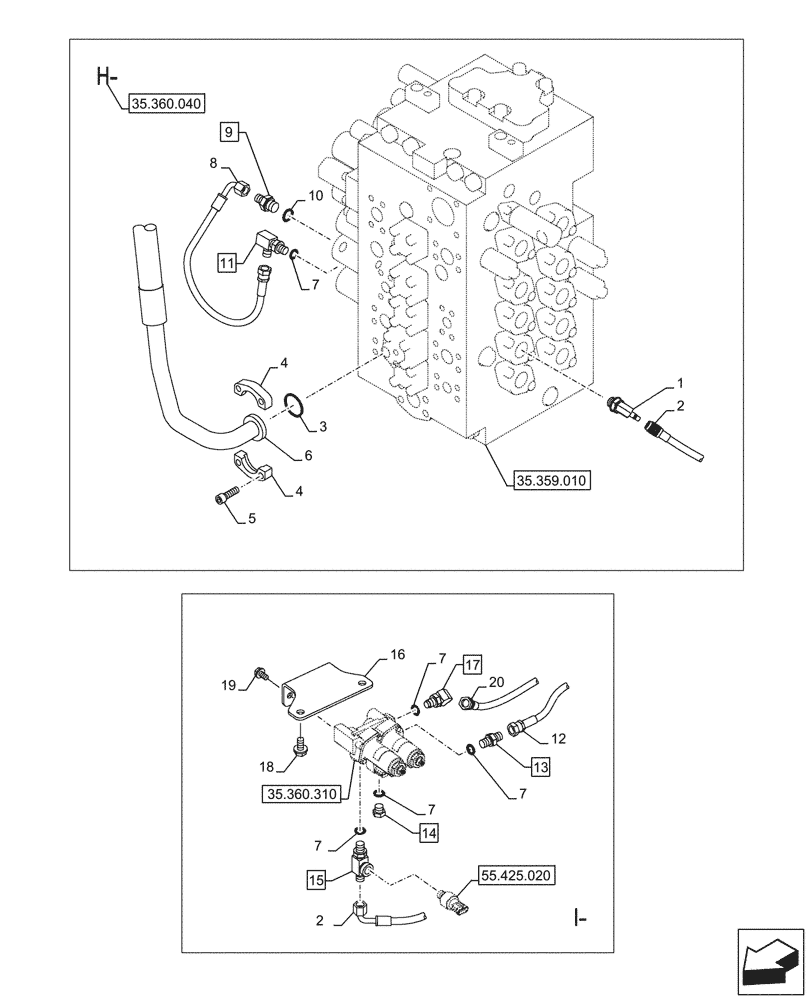

Запчасти Case CX245D SR LC (35.360.060) - HAMMER CIRCUIT, LINES (35) - HYDRAULIC SYSTEMS

1

KHJ38280

ELBOW

G3/8" x 1/4"

1шт.

2

KHJ38480

6mm ID x 2300mm

HYDRAULIC HOSE

1шт.

3

155211A1

O-RING

1шт.

4

153459A1

FLANGE

2шт.

5

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

6

KRJ43050

HYDRAULIC HOSE

25mm ID x 840mm

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

5шт.

8

KHJ2342

HOSE

6mm ID x 380mm

1шт.

9

153378A1

ADAPTER

ASSY, G3/8" x G1/4", Incl 10

1шт.

10

154475A1

O-RING

1шт.

11

KHJ2773

TEE

ASSY, G1/4", Incl 7 (Qty 1)

1шт.

12

KHJ2044

HOSE,6.3mm ID x 350mm L

6mm ID x 350mm

1шт.

13

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 7 (Qty 1)

1шт.

14

159002A1

PLUG

ASSY, G1/4", Incl 7 (Qty 1)

1шт.

15

167666A1

FITTING

ASSY, G1/4" x G1/4" x G1/4", Incl 7 (Qty 1)

1шт.

16

KHJ28770

BRACKET

1шт.

17

KHJ0994

ADAPTER

ASSY, Incl 7 (Qty 1)

1шт.

18

166351A1

BOLT,Sems, M10 x 20mm

2шт.

19

166345A1

BOLT

M8 x 16mm

2шт.

20

KHJ2181

HOSE

6mm ID x 580mm

1шт.
