(35.360.020) - HAMMER CIRCUIT, LINES

Запчасти Case CX245D SR LC (35.360.020) - HAMMER CIRCUIT, LINES (35) - HYDRAULIC SYSTEMS

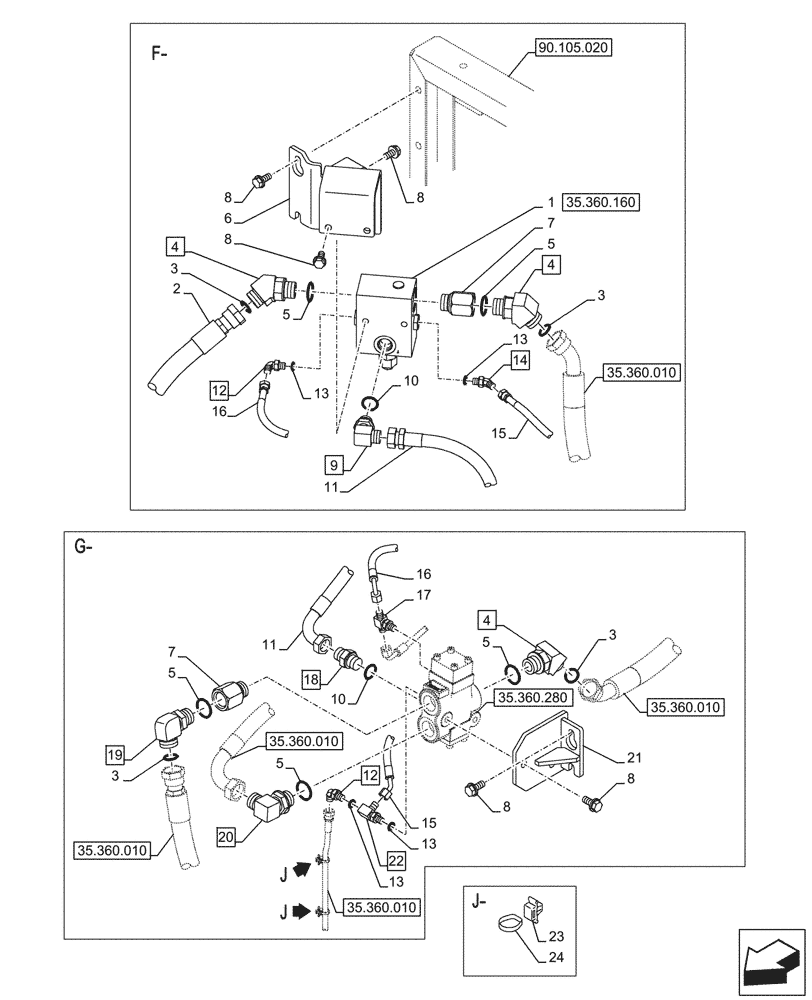

Схема запчастей Case CX245D SR LC - (35.360.020) - HAMMER CIRCUIT, LINES (35) - HYDRAULIC SYSTEMS
35.360.010
11
7
11
5
13
7
23
14
21
20
12
3
3
3
15
1
4
13
22
16
4
9
8
6
13
8
10
3
5
8
4
10
8
17
13
5
5
19
5
12
16
18
2
8
24
15
35.360.280
90.105.020
35.360.160
35.360.010
35.360.010
35.360.010
35.360.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ10410

VALVE SECTION

ASSY

1шт.

2

KRJ43050

HYDRAULIC HOSE

25mm ID x 840mm, From Direction Valve to Control Valve

1шт.

3

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

4

KHJ11370

ELBOW

ASSY, Incl 5 (Qty 1)

3шт.

5

154523A1

O-RING

5шт.

6

KRJ43950

BRACKET

1шт.

7

KHJ34260

BUSHING

G1" x G1"

2шт.

8

166352A1

BOLT

M12 x 30mm

8шт.

9

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

ASSY, G3/4" x G3/4", Incl 10 (Qty 1)

1шт.

10

154503A1

O-RING

2шт.

11

KRJ36020

19mm ID x 930mm

HYDRAULIC HOSE

1шт.

12

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 13 (Qty 1)

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

14

KHJ28630

ELBOW

ASSY, G1/4" x G1/4", Incl 13 (Qty 1)

1шт.

15

KHJ38500

6mm ID x 900mm

HOSE

1шт.

16

KHJ38510

6mm ID x 1150mm

HOSE

1шт.

17

167321A1

TEE

2-G1/4" x G1/4"

1шт.

18

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ASSY, G3/4" x G3/4", Incl 10 (Qty 1)

1шт.

19

KHJ1805

ELBOW

ASSY, G1" x 17/16", Incl 5 (Qty 1)

1шт.

20

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

ASSY, G1" x G1", Incl 5 (Qty 1)

1шт.

21

KRJ42910

BRACKET

1шт.

22

KHJ2773

TEE

ASSY, G1/4", Incl 13 (Qty 1)

1шт.

23

KHR10220

MOUNTING CLIP

2шт.

24

150496A1

MOUNTING CLIP

250mm

2шт.
