(35.360.010) - HAMMER CIRCUIT, LINES

Запчасти Case CX245D SR LC (35.360.010) - HAMMER CIRCUIT, LINES (35) - HYDRAULIC SYSTEMS

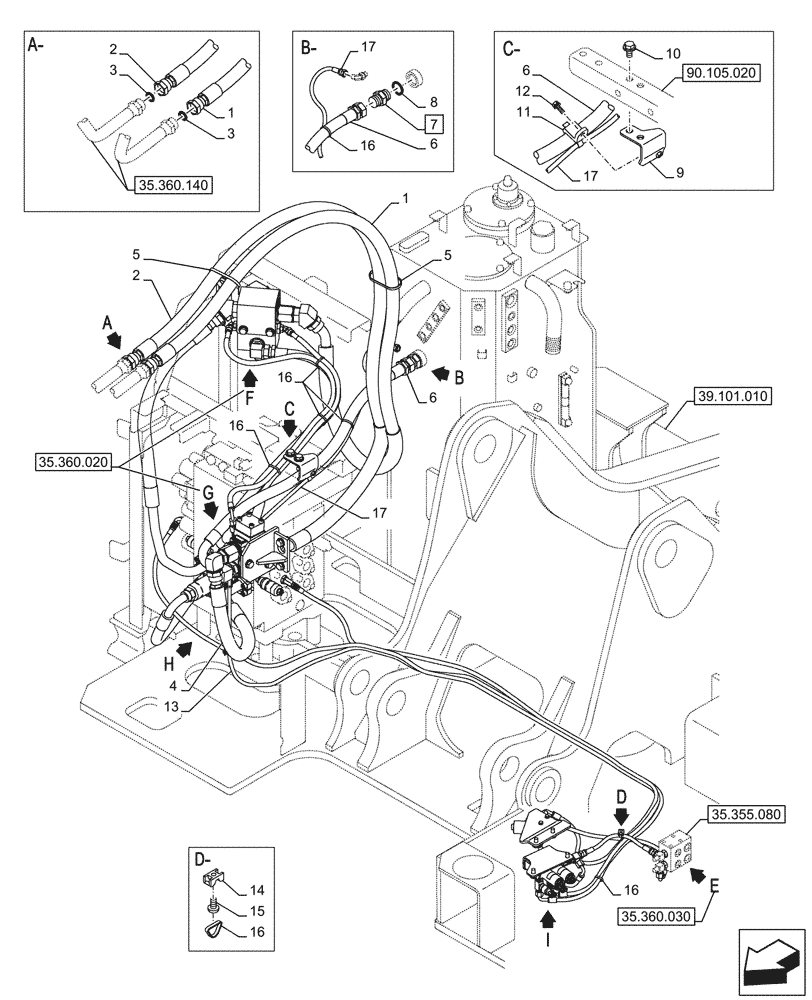

Схема запчастей Case CX245D SR LC - (35.360.010) - HAMMER CIRCUIT, LINES (35) - HYDRAULIC SYSTEMS
35.355.080
1
13
6
9
2
16
16
11
2
17
6
17
12
6
5
3
8
17
1
5
16
14
3
4
15
16
16
7
10
35.360.030
39.101.010
35.360.140
90.105.020
35.360.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRJ42990

25mm ID x 2720mm, From Valve Shut-off to Boom

HYDRAULIC HOSE

1шт.

2

KRJ43000

25mm ID x 2530mm, From Valve Direction to Boom

HYDRAULIC HOSE

1шт.

3

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

4

KRJ42930

HYDRAULIC HOSE

25mm ID x 800mm, From Direction Valve to Control Valve

1шт.

5

150071A1

MOUNTING CLIP

380mm

2шт.

6

KMJ2144

HYDRAULIC HOSE

1шт.

7

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ASSY, G1" x G1", 8

1шт.

8

154523A1

O-RING

1шт.

9

KRJ42920

BRACKET

1шт.

10

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

11

KHR2581

CLAMP

M8

1шт.

12

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

13

KHJ2167

HOSE

6mm ID x 2800mm, From Valve Direction to Solenoid Valve

1шт.

14

150860A1

COLLAR

1шт.

15

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

16

150496A1

MOUNTING CLIP

250mm

5шт.

17

KHJ2249

HOSE

6mm ID x 950mm, From Sump Tank to Direction Valve

1шт.
