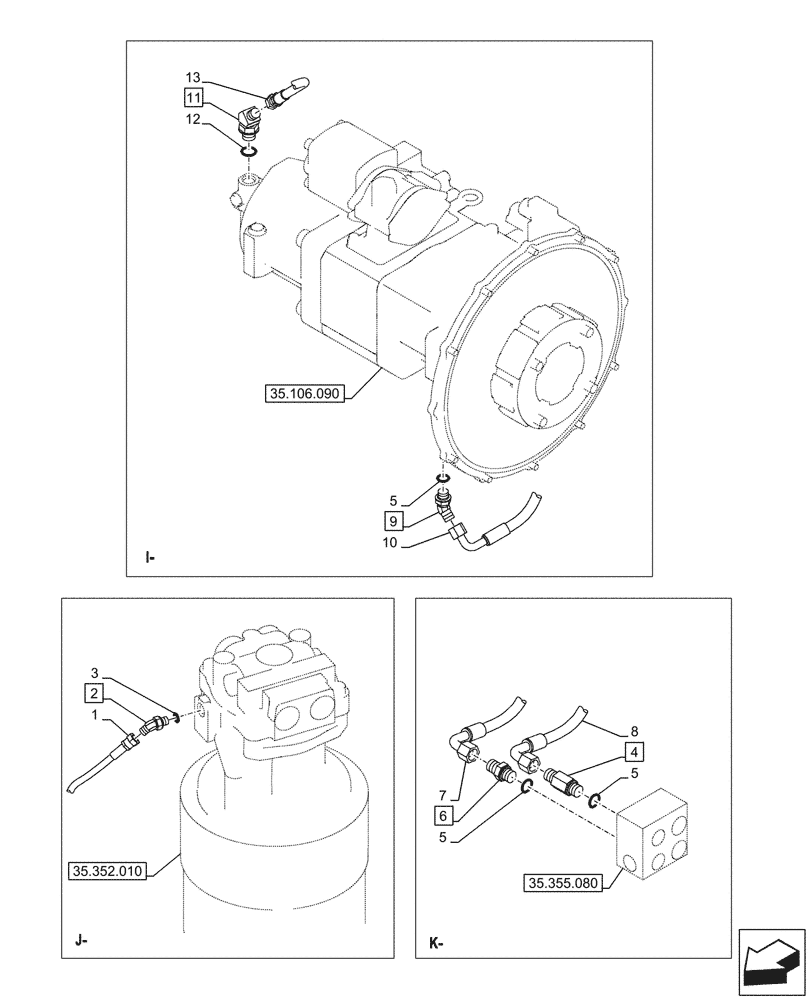

Запчасти Case CX245D SR LC (35.357.040) - PILOT, LINES (35) - HYDRAULIC SYSTEMS

1

KHJ14920

HYDRAULIC HOSE,6.35 mm ID x 1850.00 mm

6mm ID x 1850mm, From Swing Motor to Solenoid Valve

1шт.

2

KHJ28630

ELBOW

ASSY, G1/4" x G1/4", Incl 3

1шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

4

159226A1

ADAPTER

ASSY, G3/8" x G3/8", Incl 5 (Qty 1)

1шт.

5

154475A1

O-RING

3шт.

6

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8" x G3/8", Incl 5 (Qty 1)

1шт.

7

KHJ35680

HOSE

9mm ID x 2200mm, From Solenoid Valve to Manifold Valve

1шт.

8

KHJ37970

HOSE

9mm ID x 2850mm, From Hydraulic Oil Reservoir to Manifold Valve

1шт.

9

KHJ28640

ELBOW

ASSY, G3/8" x G3/8", Incl 5 (Qty 1)

1шт.

10

KHJ37980

HOSE

9mm ID x 990mm, From Hydraulic Pump to Accumlator

1шт.

11

KHJ1254

ELBOW

ASSY, G1/2" x G3/8", Incl 12 (Qty 1)

1шт.

12

154487A1

O-RING

1шт.

13

KHJ1168

HYDRAULIC HOSE,9.52 mm ID x 350.00 mm

9mm ID x 350mm, From Hydraulic Pump to Accumlator

1шт.
