(35.353.070) - TRAVEL MOTOR & REDUCTION GEAR, LINES

Запчасти Case CX245D (35.353.070) - TRAVEL MOTOR & REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS

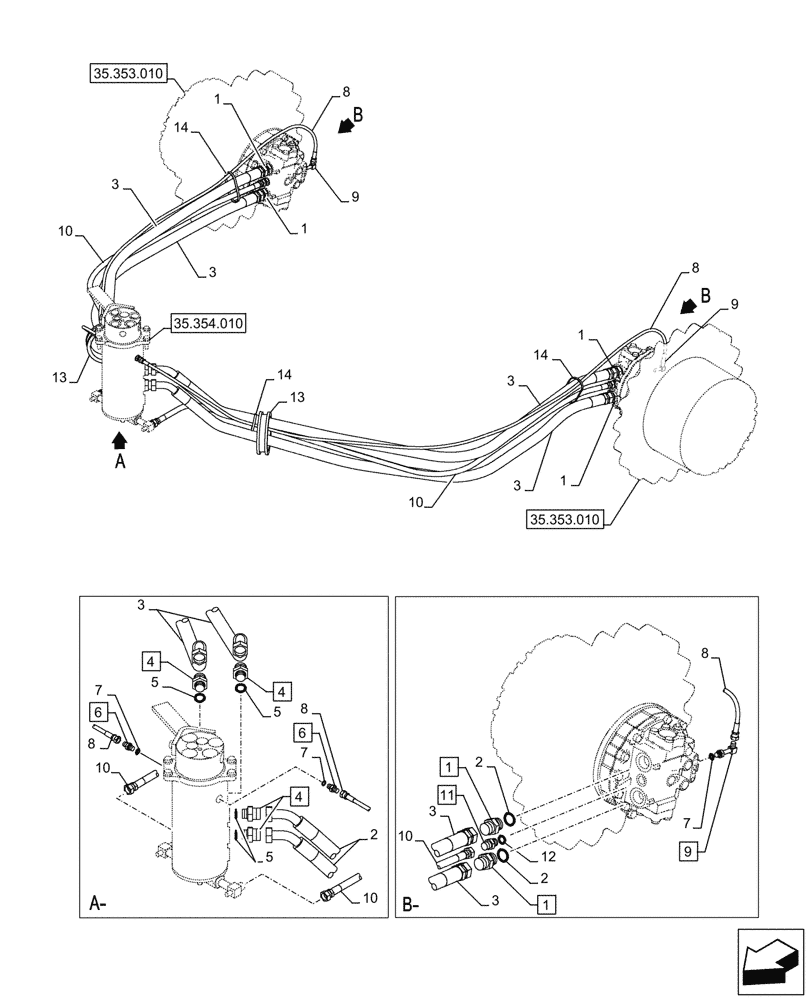

Схема запчастей Case CX245D - (35.353.070) - TRAVEL MOTOR & REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS
35.353.010
13
2
5
3
10
1
14
7
12
10
10
8
9
5
8
7
1
1
3
10
3
7
8
3
14
6
9
9
6
1
3
3
4
8
4
1
14
10
4
3
13
1
2
11
8
5
2
1
35.353.010
35.354.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ASSY, G1" x G1", Incl 2

4шт.

2

154523A1

O-RING

4шт.

3

160429A1

HOSE ASSY.

4шт.

4

153001A1

ADAPTER

ASSY, Incl 5

4шт.

5

154503A1

O-RING

4шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 7

2шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

8

152778A1

HOSE ASSY.

04mm ID x 2700mm

2шт.

9

KHJ1178

ELBOW

ASSY, G1/4" x G1/4" x 63mm, Incl 7

2шт.

10

152435A1

HYDRAULIC HOSE,12.70 mm ID x 2150.00 mm

2шт.

11

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, G1/2" x G1/2", Incl 12

2шт.

12

154487A1

O-RING

2шт.

13

160414A1

RUBBER BLOCK

25mm x 440mm

2шт.

14

150071A1

MOUNTING CLIP

380mm

4шт.
