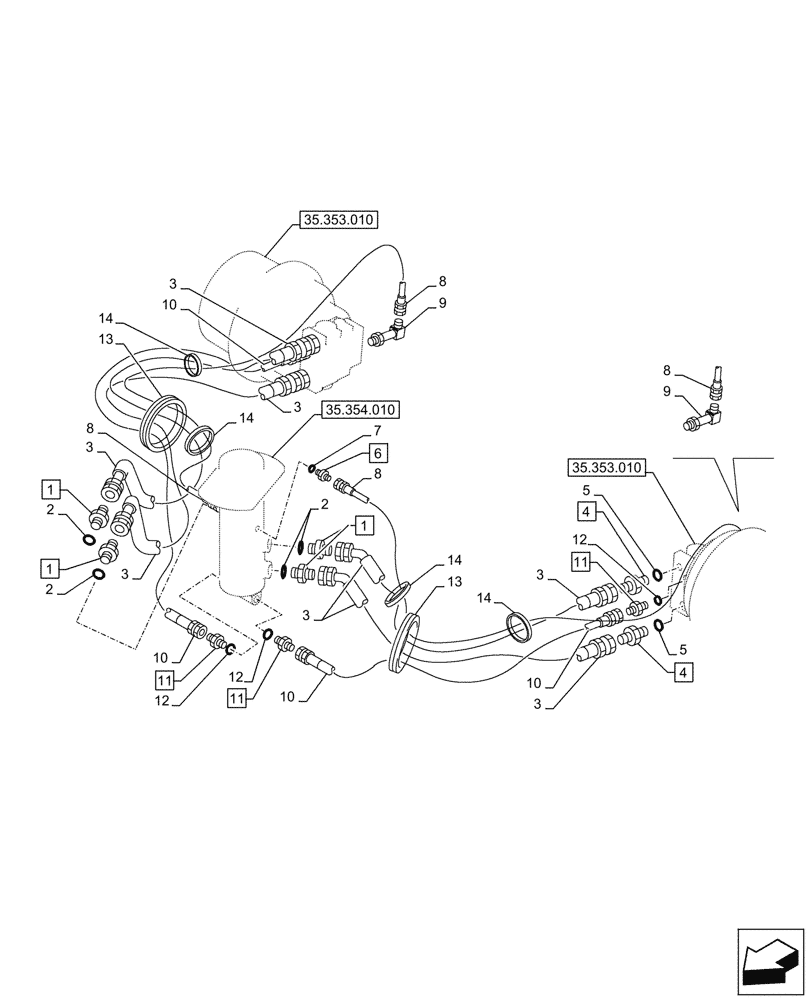

Запчасти Case CX245D (35.353.060) - TRAVEL MOTOR & REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS
35.353.010
14
5
3
14
14
10
3
5
13
8
1
1
4
12
9
2
4
14
3
3
10
10
11
8
3
13
1
8
7
11
3
11
2
3
8
12
10
2
12
6
9
35.354.010
35.353.010
№
Артикул
Название
Примечание
Количество
1
151655A1
HYD CONNECTOR,1" NPT O-Ring x 1" NPT
ASSY, Incl 2, Fitting G1" x G1"
4шт.
3
160429A1
HOSE ASSY.
4шт.
4
153001A1
ADAPTER
ASSY, Incl 5
4шт.
6
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
ASSY, Incl 7, Fitting G1/4" x G1/4"
2шт.
7
154467A1
O-RING,10.8mm ID x 2.4mm Width
2шт.
8
152778A1
HOSE ASSY.
2шт.
9
KHJ1178
ELBOW
Fitting G1/4" x G1/4" x 63mm
2шт.
10
152435A1
HYDRAULIC HOSE,12.70 mm ID x 2150.00 mm
2шт.
11
151650A1
HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT
ASSY, Incl 12, Fitting G1/2" x G1/2"
4шт.
13
160414A1
RUBBER BLOCK
2шт.
14
150071A1
MOUNTING CLIP
380mm
4шт.
