(35.352.030) - MOTO-REDUCTION GEAR, LINES

Запчасти Case CX245D (35.352.030) - MOTO-REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS

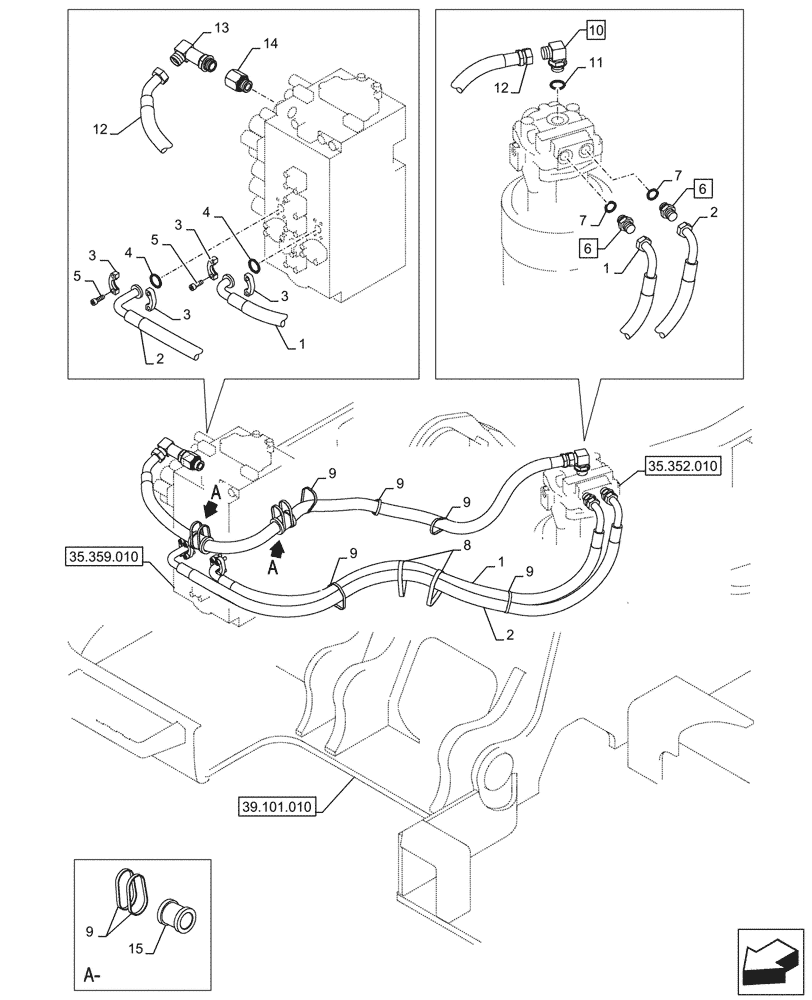

Схема запчастей Case CX245D - (35.352.030) - MOTO-REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS
35.359.010
3
3
6
5
7
9
1
2
4
14
6
5
11
1
3
15
1
12
2
12
2
8
9
9
9
3
7
10
13
9
4
9
39.101.010
35.352.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRJ42630

HYDRAULIC HOSE

19mm ID x 1600mm

1шт.

2

KRJ42640

HYDRAULIC HOSE

19mm ID x 1850mm

1шт.

3

153458A1

FLANGE

4шт.

4

155210A1

O-RING

2шт.

5

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

M10 x 30mm

8шт.

6

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ASSY, G3/4" x G3/4", Incl 7

2шт.

7

154503A1

O-RING

2шт.

8

KHJ36900

L=541mm

BAND

2шт.

9

150071A1

MOUNTING CLIP

380mm

9шт.

10

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

ASSY, G1" x G1", Incl 11

1шт.

11

154523A1

O-RING

1шт.

12

KRJ42670

HYDRAULIC HOSE

25mm ID x 1950mm

1шт.

13

KHJ24380

ELBOW

G 1"

1шт.

14

KHJ34260

BUSHING

G1" x G1"

1шт.

15

KHJ2373

HOSE CLAMP

2шт.
