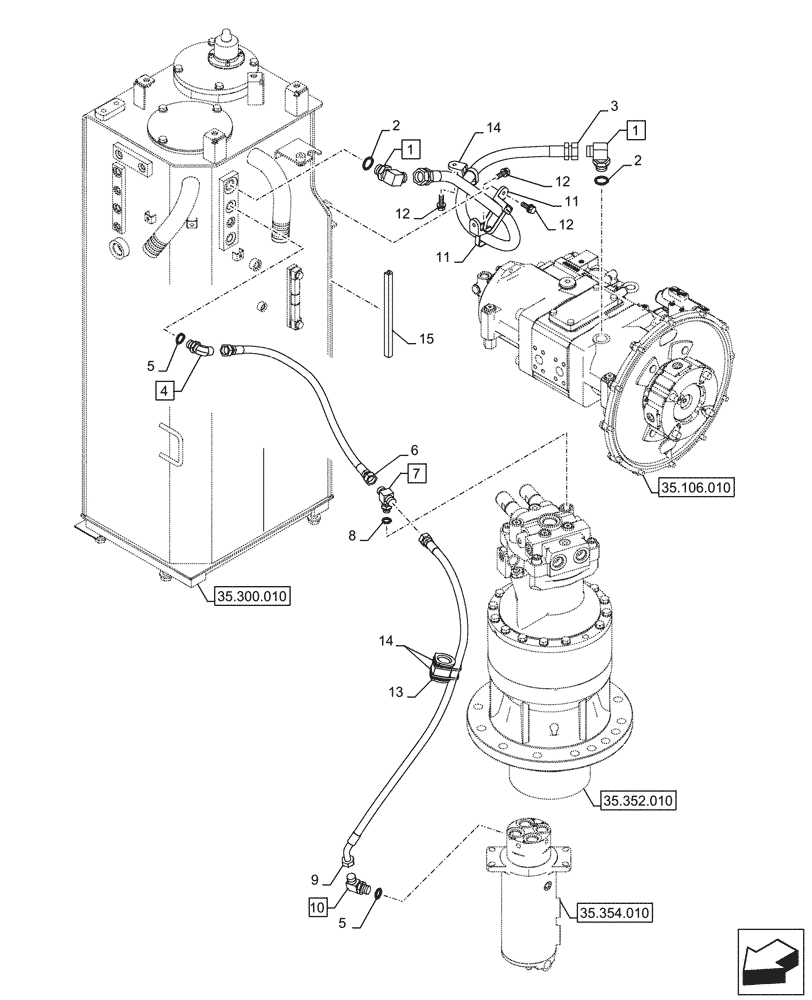

Запчасти Case CX245D (35.352.020) - MOTO-REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS

1

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

ASSY, G3/4" x G3/4", Incl 2

2шт.

2

154503A1

O-RING

2шт.

3

ADV15570

HYDRAULIC HOSE

19mm ID x 1250mm

1шт.

4

KHJ28600

ELBOW

ASSY, G1/2" x G1/2", Incl 5 (Qty 1)

1шт.

5

154487A1

O-RING

2шт.

6

KHJ35900

HYDRAULIC HOSE

L=730mm

1шт.

7

KHJ1157

TEE

ASSY, Incl 8

1шт.

8

154475A1

O-RING

1шт.

9

KHJ2789

HYDRAULIC HOSE

L=1000mm

1шт.

10

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

ASSY, G1/2" x G1/2", Incl 5 (Qty 1)

1шт.

11

KHR2581

CLAMP

M8

3шт.

12

KHJ1215

BOLT,Spcl

M8 x 25mm

3шт.

13

KHJ2680

COLLAR CLAMP

1шт.

14

150496A1

MOUNTING CLIP

250mm

2шт.

15

KMJ2839

SEAL PROTECTION

1шт.
