(35.352.010) - MOTO-REDUCTION GEAR, LINES

Запчасти Case CX245D (35.352.010) - MOTO-REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS

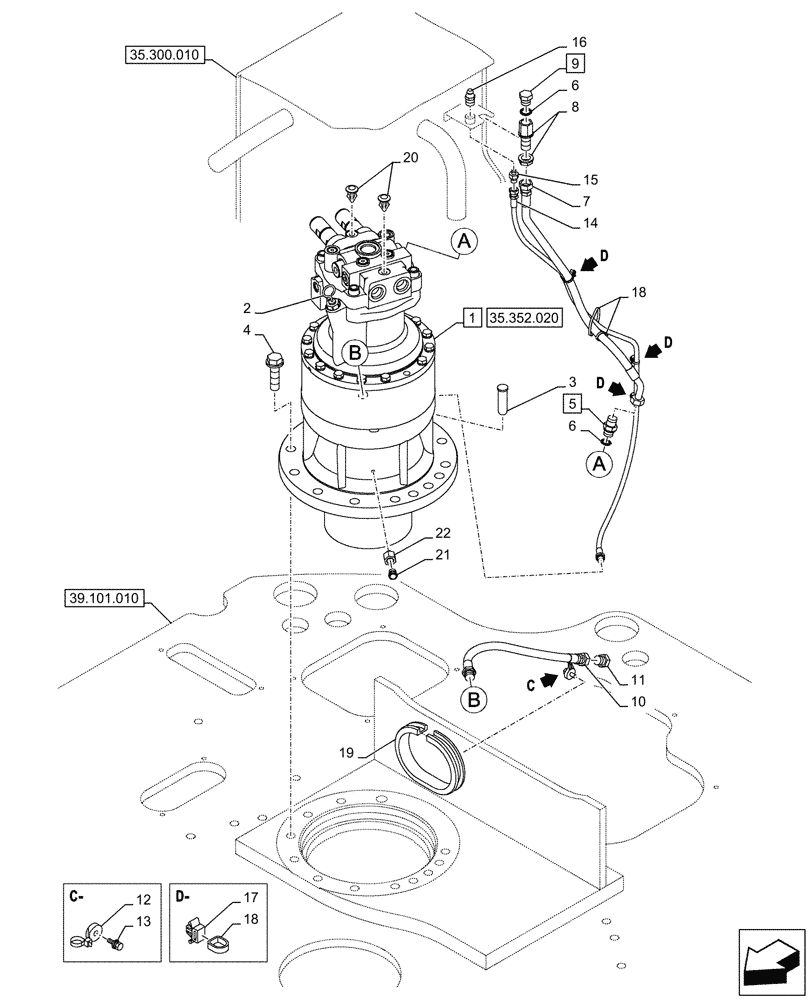

Схема запчастей Case CX245D - (35.352.010) - MOTO-REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS
35.300.010
5
15
18
16
8
17
11
7
6
21
1
6
13
4
2
12
14
3
18
19
20
22
10
9
35.352.020
39.101.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRC10510

HYDRAULIC MOTOR

ASSY, Incl 2

1шт.

2

KRC10030

DIPSTICK

1шт.

3

KRC11720

PIN

1шт.

4

166354A1

BOLT,Sems, M20 x 75mm

11шт.

5

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, G1/2" x G1/2", Incl 6 (Qty 1)

1шт.

6

154487A1

O-RING

2шт.

7

KHJ27090

HYDRAULIC HOSE

L=700mm

1шт.

8

KHJ1079

ADAPTER

1шт.

9

159085A1

PLUG

ASSY, 1/2", Incl 6 (Qty 1)

1шт.

10

KRC10340

HYDRAULIC HOSE

12mm ID x 420mm

1шт.

11

KHP0578

PLUG

1шт.

12

KHR2584

CLAMP

1шт.

13

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

14

KHJ23430

HOSE

6mm ID x 1250mm

1шт.

15

KRJ4050

ADAPTER

1шт.

16

153630A1

LUBE NIPPLE

1шт.

17

KHR10220

MOUNTING CLIP

3шт.

18

150496A1

MOUNTING CLIP

250mm

5шт.

19

KMJ2002

RUBBER SEAL

1шт.

20

KHV12270

SCREW,M12 x 1

2шт.

21

KRC10710

VALVE

1шт.

22

KRC10720

FITTING

1шт.
