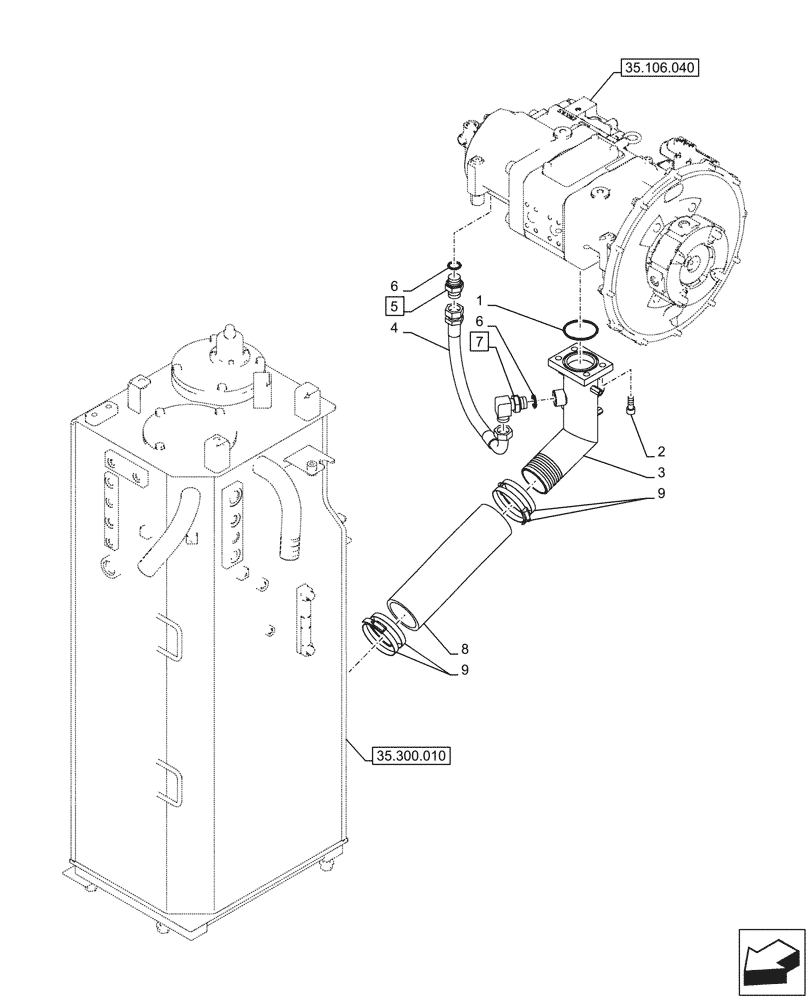

Запчасти Case CX245D (35.106.010) - VARIABLE DELIVERY HYDRAULIC PUMP, LINES (35) - HYDRAULIC SYSTEMS

1

154681A1

O-RING

1шт.

2

862-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

M12 x 30mm

4шт.

3

KRJ42220

PIPE

1шт.

4

KNJ2594

HYDRAULIC HOSE,19.00 mm ID x 440.00 mm

1шт.

5

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ASSY, G3/4" x G3/4", Incl 6 (Qty 1)

1шт.

6

154503A1

O-RING

2шт.

7

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

ASSY, G3/4" x G3/4", Incl 6 (Qty 1)

1шт.

8

KHJ23480

HOSE

1шт.

9

KHJ32620

CLIP

4шт.
